Allis Chalmers 416 Engine


Allis Chalmers 416 tractor photo
1973
400 Series
Garden tractor
Series map:
414
416
14.0hp
16.0hp
Engine Detail
Kohler
gasoline
1-cylinder
air-cooled
Displacement588 cc
35.89 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power16 hp
11.9 kW
Air cleanerdry element
Rated RPM3600
Starter volts12
Engine Oil

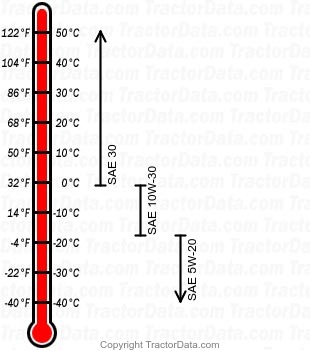

416 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
