Allis Chalmers 410 Engine


Allis Chalmers 410 tractor photo
1973
400 Series
Garden tractor
Series map:
410
414
10.0hp
14.0hp
Engine Detail
Kohler
gasoline
1-cylinder
air-cooled
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Air cleanerdry element
Rated RPM3600
Starter volts12
Engine Oil

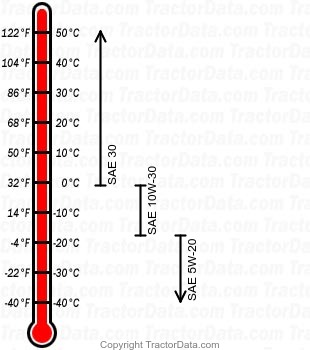

410 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
