Allis Chalmers 314 Engine


Allis Chalmers 314 tractor photo
1971 - 1973
300 Series
Garden tractor
Series map:
312
314
12.0hp
14.0hp
Engine Detail
Kohler
gasoline
1-cylinder
air-cooled
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power14 hp
10.4 kW
Rated RPM3600
Starter volts12
Engine Oil

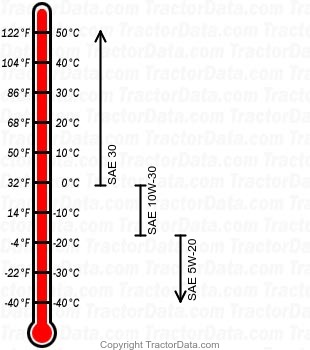

314 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
