Allis Chalmers 310 Transmission


Allis Chalmers 310 tractor photo
1971 - 1973
300 Series
Garden tractor
Series map:
310
312
10.0hp
12.0hp
Transmission
TransmissionVari-Shift
Typebelt-driven variator
Gears21 forward and 7 reverse
Three gears, plus reverse, with seven-position variator.
Speeds

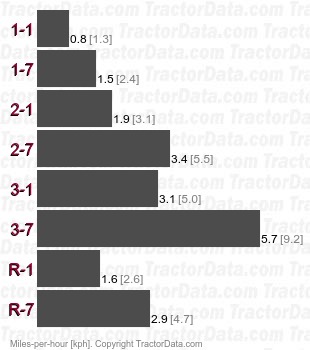

310 Vari-Shift belt-driven variator speeds
Shift Pattern
Allis Chalmers 310 transmission controls
310 Transmission Controls
Allis Chalmers 310 transmission controls
1Throttle
2Clutch/brake
3Variator
4Gear shift
