Allis Chalmers B-10

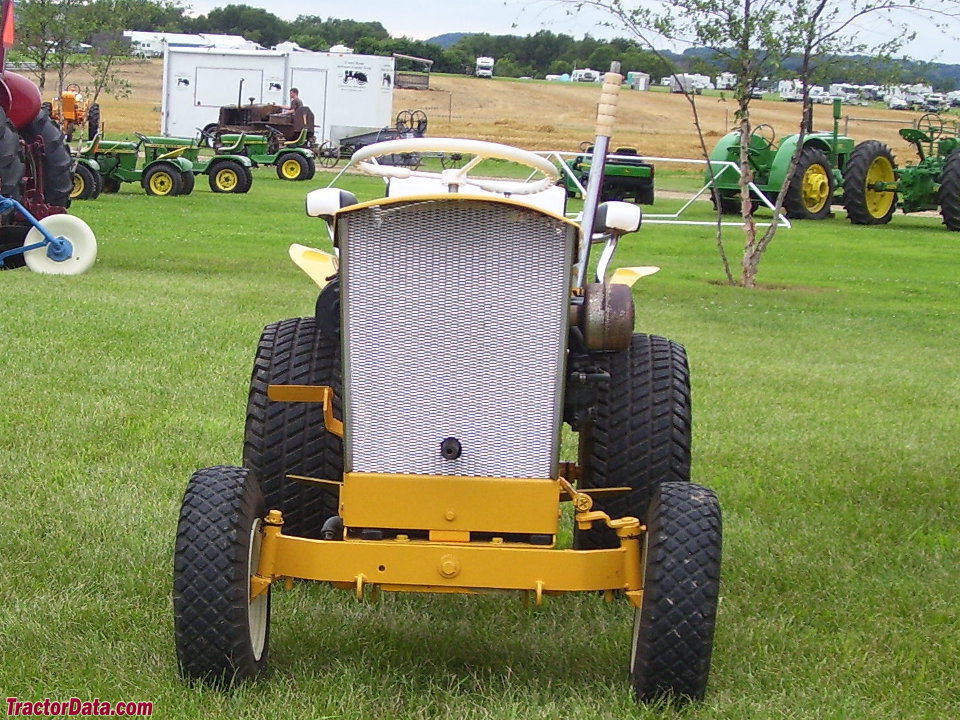

Allis Chalmers B-10 tractor photo
1963 - 1968
Model year
B Series
Garden tractor
Simplicity built
Production
DistributorAllis Chalmers
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Allis Chalmers B-10 Engine
9HP Briggs & Stratton 376cc 1-cyl gasoline
Fuel tank1.5 gal
5.7 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTOlive
Mid PTOlive
Front PTOlive
Dimensions & Tires
Wheelbase44 inches
111 cm
Weight685 lbs
310 kg
Front tire4.80x8
Rear tire23-8.50x12
Full dimensions and tires ...
Allis Chalmers B-10 attachments
32" mid-mount mower deck
42" mid-mount mower deck
Attachment details ...
B-10 Serial Number Location
Allis Chalmers B-10 serial number location
Serial number tag on the fender deck, behind the operator seat.
Links
Allis-Chalmers B-10: information, photos and old advertising literature at SimpleTractors.com
References
B-10 references literature
Service Manual B Series Tractors (9003453) published in 1976
