Allis Chalmers B-1
|
|
| Production | |
| Distributor | Allis Chalmers |
| Manufacturer | Simplicity |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Allis Chalmers B-1 Engine | |
| 7.25HP Briggs & Stratton 304cc 1-cyl gasoline | |
| Fuel tank | 1.5 gal 5.7 L |
 Engine details ... | |
| Allis Chalmers B-1 Transmission | |
| 3-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |

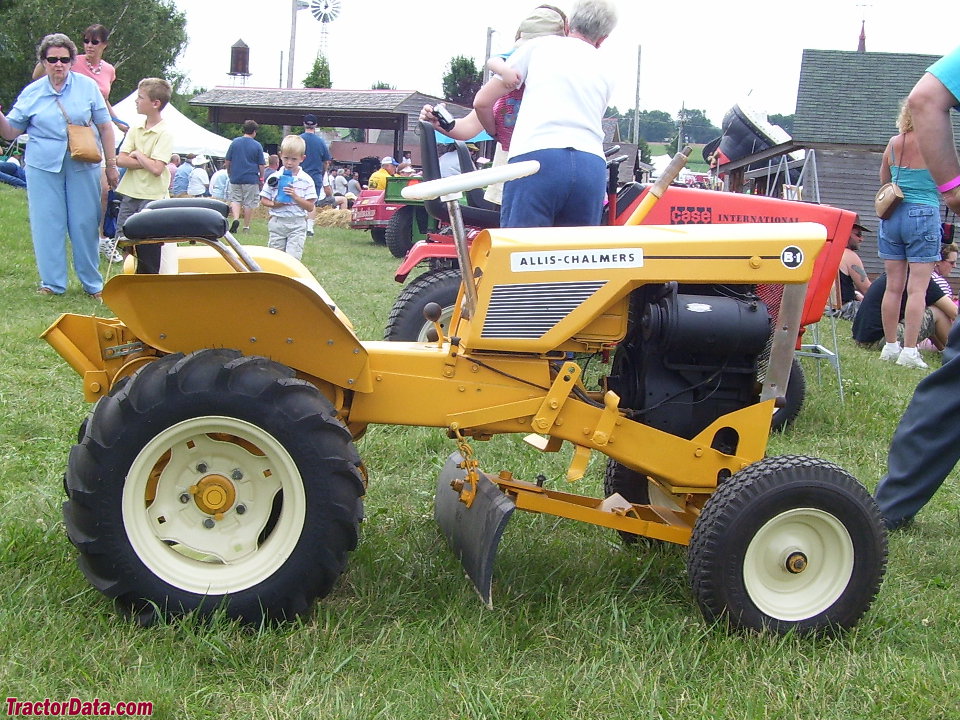

| Photos | |
 | |
 Allis Chalmers B-1 photos... | |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Mid PTO | live |
| Front PTO | live |
| Dimensions & Tires | |
| Wheelbase | 44 inches 111 cm |
| Weight | 600 lbs 272 kg |
| Front tire | 4.80x8 |
| Rear tire | 6.00x12 |
 Full dimensions and tires ... | |
| Allis Chalmers B-1 attachments | |
| 42" mid-mount mower deck | |
 Attachment details ... |
| Links | |
| Allis-Chalmers B-1: information, photos and old advertising literature at SimpleTractors.com |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Service Manual B Series Tractors (9003453) published in 1976 |
