John Deere X534 Engine


John Deere X534 tractor photo
2006 - 2015
Model year
Select X500 Series
Garden tractor
Series map:
X520
X534
X540
26.0hp
25.0hp
26.0hp
Engine Detail
Kawasaki FH721V
gasoline
2-cylinder
air-cooled
Displacement675 cc
41.2 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power (gross)25 hp
18.6 kW
Fuel systemcarburetor
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.006 inches (cold)
0.152 mm
Exhaust valve clearance0.006 inches (cold)
0.152 mm
Engine Oil

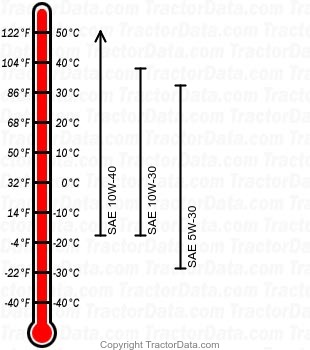

X534 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
