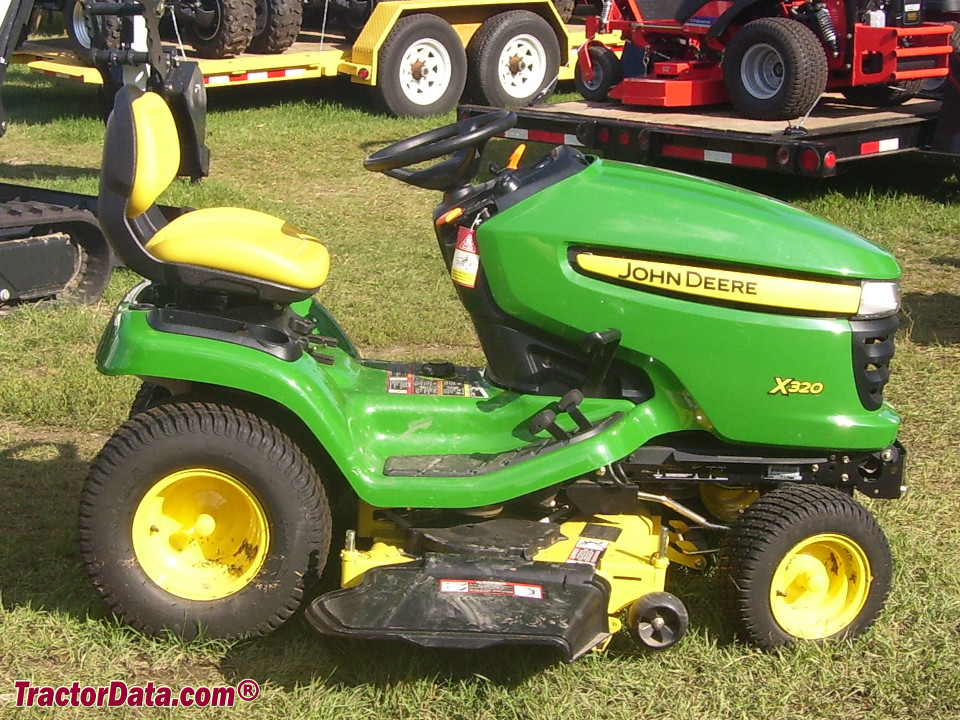

John Deere X320
| | 2006 - 2015 |
|
| Select X300 Series | | Lawn tractor |
|
Series map:
X300
X320
17.0hp
22.0hp
| Production |
| Manufacturer | John Deere
|
| Lawn tractor |
| Built in Horicon, Wisconsin, USA |
| Original price was $4,099 in 2010 |
| Variants |
| X320 | two-wheel steer
|
| X324 | four-wheel steer
|
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Open operator station. Optional sunshade and vinyl weather enclosure. Adjustable seat with seven inches of travel. Cupholder and tool tray standard. |
| Power Take-off (PTO) |
| Mid PTO | independent
|
| Clutch | electric
|
| X320 Serial Number Location |
 |
| Serial number tag on the right side of the John Deere X320, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging amps | 15
|
| Battery CCA | 160 (early)
|
| | 195 (late)
|
| Battery volts | 12
|
| References |
 |
| Select Series Tractors published in 2007, by John Deere |
| Select Series Tractors published in 2009, by John Deere |
| Operator's Manual X300 Tractors (OMM158184) published in 2008 |
| Operator's Manual X300 Tractors (OMM161628) published in 2009 |
| Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on July 6, 2021 |
