John Deere STX38 Yellow Deck
Series map:
STX30
STX38
9.0hp
12.5hp
| Production |
| Manufacturer | John Deere
|
| Lawn tractor |
| Built in Horicon, Wisconsin, USA |
| Original price was $2,350 in 1993 |
| Two basic versions of the STX38 were the original "yellow-deck" from 1989 to 1993, and the later "black-deck" from 1994 to 1997. The STX38 yellow-deck model was available with more features than the later black-deck version. A kit (AM107293) was optional to add headlights. |
| Mechanical |
| Two-wheel drive |
| Steering | manual sector-and-pinion
|
| Integral mechanical disc brakes |
| Open operator station with foam-padded seat. |
| Power Take-off (PTO) |
| Rear PTO | electric
|

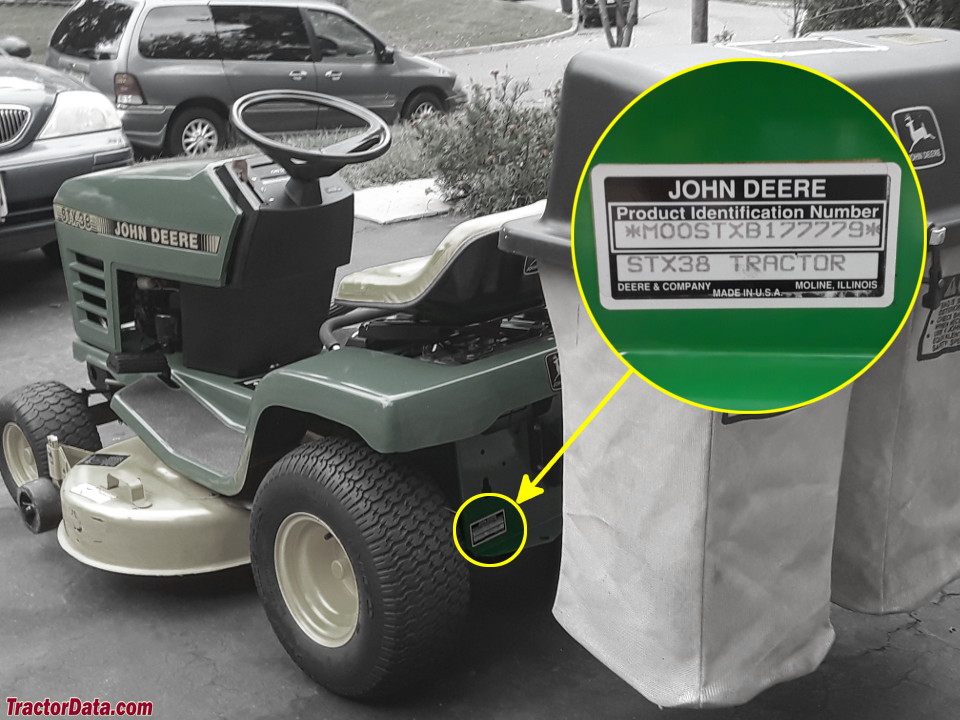

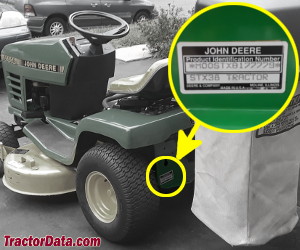

| STX38 Serial Number Location |
 |
| Serial number decal on the lower-rear of the the John Deere STX38, near the drawbar. |
| STX38 Serial Numbers |
| 1989 | 595001 (yellow deck)
|
| 1990 | 010001 (yellow deck)
|
| 1991 | 100001 (yellow deck)
|
| 1992 | 135001 (yellow deck)
|
| 1993 | 160001 (yellow deck)
|
| 1994 | 210001 (black deck)
|
| 1995 | 240001 (black deck)
|
| 1996 | 270001 (black deck)
|
| 1997 | 290001 (black deck)
|
| 1996 | 270001 (Motorsport)
|
| 1997 | 290001 (Motorsport)
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | flywheel alternator
|
| Charging amps | 15
|
| Battery CCA | 200
|
| Battery volts | 12
|
| References |
 |
| Riding Mowers Product Information Handbook published in 1991, by John Deere |
| Walk-Behind - Riders - STX Lawn Tractors published in 1995, by John Deere |
| Lawn & Garden Equipment published in 1990, by John Deere |
| Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere |
| Suburban Tractors published in 1989, by John Deere |
| Operator's Manual STX30 and STX38 Lawn Tractors (OMM79672) published in 1989 |
