Lawn Tractors > John Deere > LX280

John Deere LX280 Engine



John Deere LX280 tractor photo
2004 - 2005
LX200 Series
Lawn tractor
Series map:
LX280
LX289
18.0hp
17.0hp
Engine Detail
Kawasaki FH580V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement585 cc
35.7 ci
Bore/Stroke2.91x2.68 inches
74 x 68 mm
Power (gross)18 hp
13.4 kW
Air cleanerpaper and foam elements
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.004 inches
0.102 mm
Exhaust valve clearance0.004 inches
0.102 mm
Engine Oil

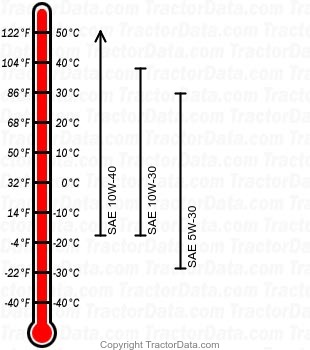

LX280 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L

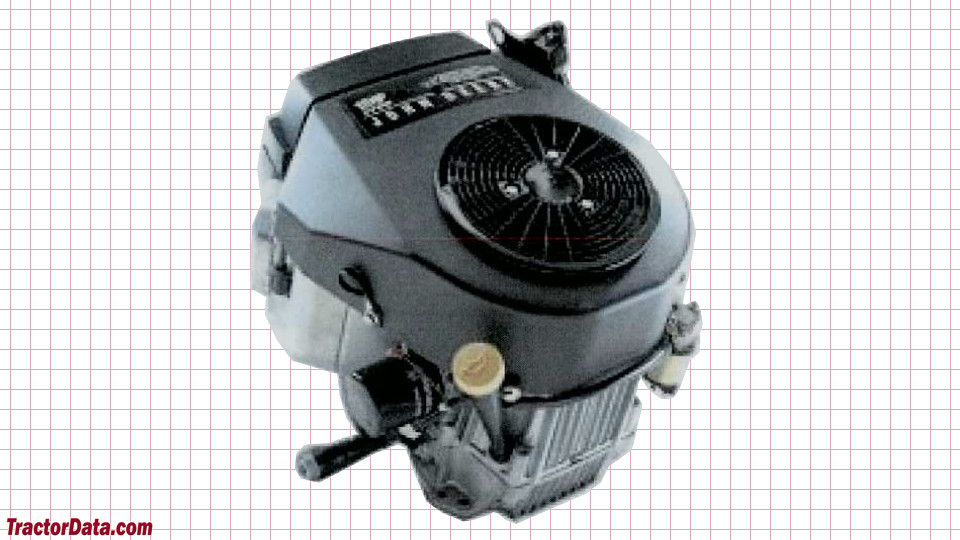

John Deere LX280 Engine
John Deere LX280 engine image
