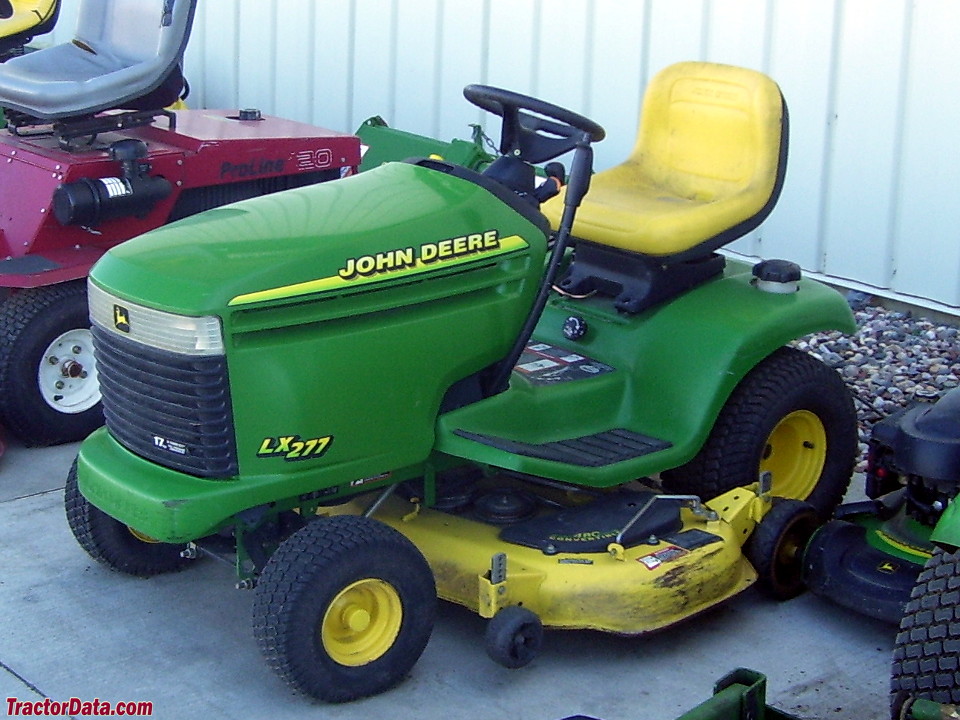

John Deere LX277
| | 1999 - 2003 |
| LX200 Series | | Lawn tractor |
|
| Production |
| Manufacturer | John Deere
|
| Lawn tractor |
| Built in Horicon, Wisconsin, USA |
| Original price | $4,150 (2001 42" )
|
| $4,400 (2001 48" )
|
| $5,000 (2001 48" AWS )
|
| Variants |
| LX277AWS | all-wheel steering
|
| Mechanical |
| Two-wheel drive |
| Steering | manual sector and pinion
|
| AWS Steering | all-wheel-steering
|
| Mechanical wet disc brakes |
| Open operator station |
| Power Take-off (PTO) |
| Front PTO | independent
|
| Clutch | electric
|
| LX277 Serial Number Location |
 |
| Serial number decal on the right side of the tractor frame. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 13
|
| Battery CCA | 500
|
| Battery volts | 12
|
| Battery Group | 51
|
| Questions |
TractorData says spark plug gap is 0.040 inches. The Kawasaki owner's manual says 0.030 inches
Thank you for the message. The 0.040 inch gap is specified in all versions of the Deere operator's manual for the LX277. I'm not sure why it is different than what Kawasaki specifies for the FH series engine.
|
| Email: Peter@TractorData.com |
| References |
 |
| Lawn and Garden Product Information Handbook published in 2000, by John Deere |
| Lawn and Garden Product Information Handbook published in 2001, by John Deere |
| Lawn and Garden Product Information Handbook published in 2002, by John Deere |
| Lawn and Garden Product Information Handbook published in 2003, by John Deere |
| LX Series Lawn Tractors published in 2000, by John Deere |
| Operator's Manual LX255, LX277, LX277AWS, LX279, LX288 (OMM142612) published in 1998 |
| Operator's Manual LX266, LX277, LX277AWS, LX279, and LX288 (OMM148972) published in 2001 |
| Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2000, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2001, by John Deere |
