John Deere LX277 Engine


John Deere LX277 tractor photo
1999 - 2003
LX200 Series
Lawn tractor
Series map:
LX266
LX277
LX279
16.0hp
17.0hp
17.0hp
Engine Detail
Kawasaki FH500V
gasoline
2-cylinder
air-cooled
Displacement493 cc
30.1 ci
Bore/Stroke2.68x2.68 inches
68 x 68 mm
Power17 hp
12.7 kW
Air cleanerpaper element with foam pre-cleaner
Rated RPM3400
Starter volts12
SparkplugChampion RCJ8Y
Sparkplug gap0.040 inches*Kawasaki FH engine manuals specify 0.030 inch gap.
1.016 mm
Engine Oil

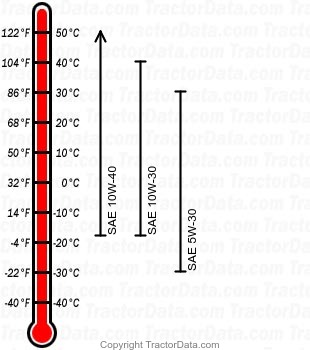

LX277 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
