John Deere LX188 Transmission


John Deere LX188 tractor photo
1992 - 1998
LX 100 Series
Lawn tractor
Series map:
LX186
LX188
17.0hp
17.0hp
Transmission
TransmissionTuff Torq K61
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.6 qts
3.4 L
Oil changefill as needed
Speeds
LX188 K61 belt-driven hydrostatic speeds
LX188 Transmission Controls

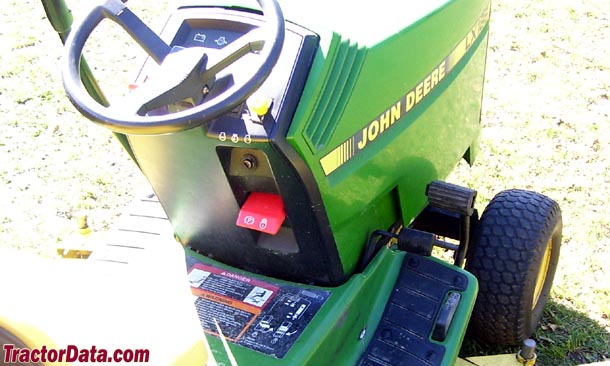

John Deere LX188 transmission controls
1Throttle
2Brake
3Forward
4Reverse
5Parking brake
