John Deere LT180 Engine


John Deere LT180 tractor photo
2002 - 2005
LT Series
Lawn tractor
Series map:
LT170
LT180
LT190
16.0hp
17.0hp
18.0hp
Engine Detail
Kawasaki FH500V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement493 cc
30.1 ci
Bore/Stroke2.68x2.68 inches
68 x 68 mm
Power (gross)17 hp
12.7 kW
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

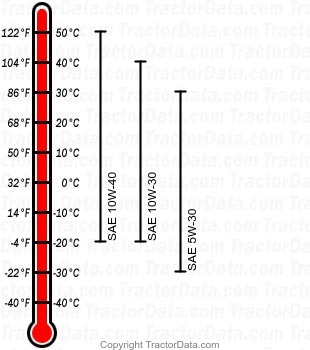

LT180 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
Oil change100 h

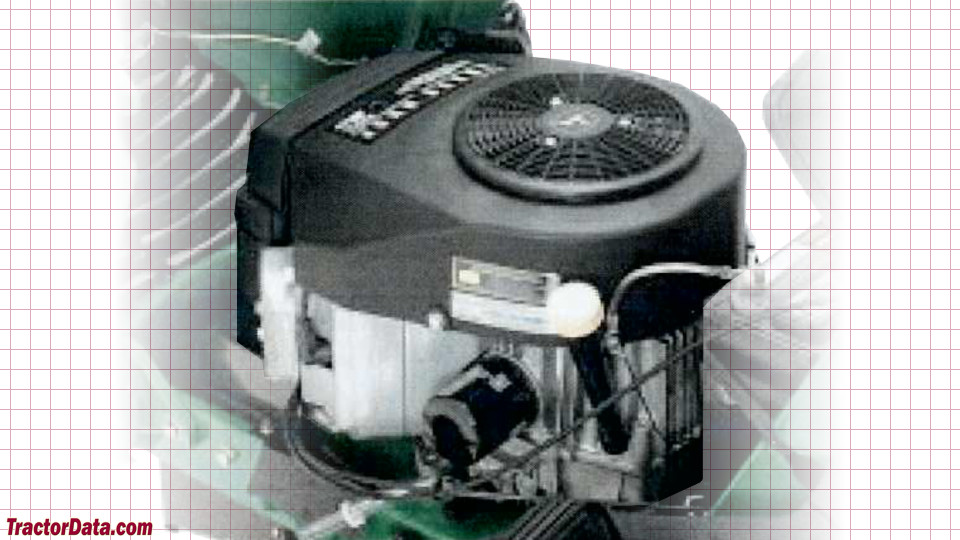

John Deere LT180 Engine
John Deere LT180 engine image
