Lawn Tractors > John Deere > L111

John Deere L111 Engine



John Deere L111 tractor photo
2005
L100 Series
Lawn tractor
Series map:
L110
L111
L118
17.5hp
20.0hp
20.0hp

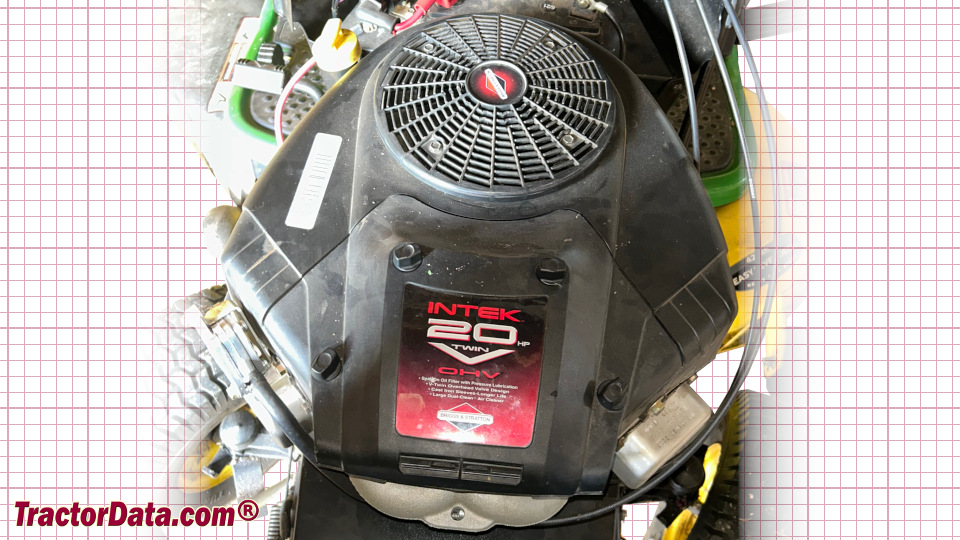

Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled vertical shaft V-Twin
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)20 hp
14.9 kW
Air cleanerreplaceable foam
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.010 inches
0.254 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.010 inches
0.254 mm
Engine Oil

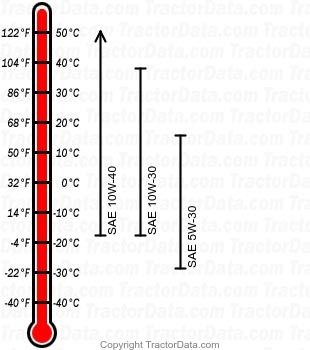

L111 gasoline engine oil chart
Oil capacity2 qts
1.9 L
