| | 2003 - 2004 |
| L100 Series | | Lawn tractor |
|
Series map:
L108
L110
L111
18.5hp
17.5hp
20.0hp
| Engine Detail |
| Kohler CV491 |
| gasoline |
| 1-cylinder |
| air-cooled vertical shaft |
| Displacement | 490 cc
29.9 ci
|
| Bore/Stroke | 3.60x3.03 inches
91 x 77 mm
|
| Power (gross) | 17.5 hp
13.0 kW
|
| Air cleaner | paper with foam
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 1.5 qts
1.4 L
|
| Oil change | 50 h
|

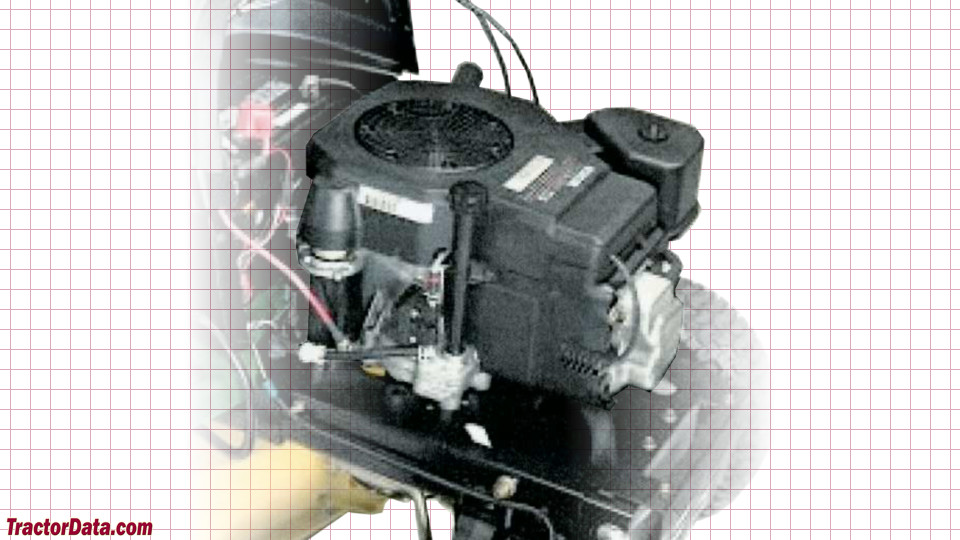

| John Deere L110 Engine |
 |
