John Deere L100 Engine


John Deere L100 tractor photo
2003 - 2005
L100 Series
Lawn tractor
Series map:
L100
L108
17.0hp
18.5hp
Engine Detail
Briggs & Stratton 31F707
gasoline
1-cylinder
air-cooled vertical shaft
Displacement501 cc
30.6 ci
Bore/Stroke3.57x3.06 inches
91 x 78 mm
Power (gross)17 hp
12.7 kW
Air cleanerpaper and foam
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

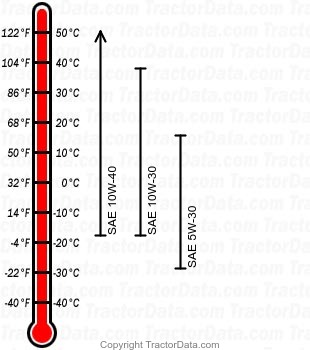

L100 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
