Lawn Tractors > John Deere > 190C

John Deere 190C Engine



John Deere 190C tractor photo
2006
Lawn tractor
Series map:
155C
190C
25.0hp
25.0hp
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled
Displacement724 cc
44.2 ci
Bore/Stroke3.15x2.64 inches
80 x 67 mm
Power25 hp
18.6 kW
Air cleanerpaper with foam
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.225 inches
5.715 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

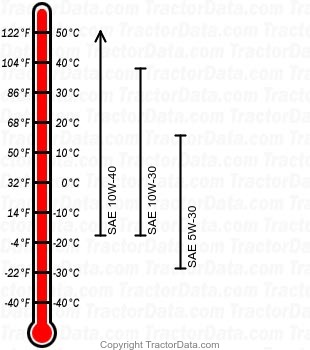

190C gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
