| | 1992 - 2001 |
| 400 Series | | Garden tractor |
|
Series map:
445
455
22.0hp
22.0hp
| Engine Detail |
| Yanmar 3TNA72UJ3 |
| diesel |
| 3-cylinder |
| liquid-cooled horizontal-shaft OHV |
| Displacement | 881 cc
53.8 ci
|
| Bore/Stroke | 2.83x2.83 inches
72 x 72 mm
|
| Power | 22 hp
16.4 kW
|
| Fuel system | electric indirect injection
|
| Air cleaner | dry type
|
| Pre-heating | glow plugs
|
| Compression | 21.6:1
|
| Rated RPM | 3350
|
| Starter volts | 12
|
| Coolant capacity | 3 qts
2.8 L
|

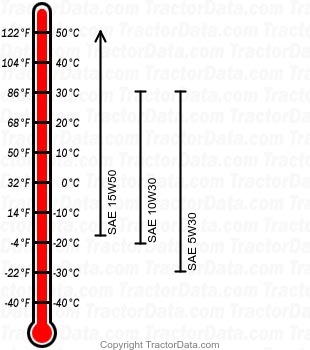

| Engine Oil |
|
| Oil capacity | 3 qts
2.8 L
|

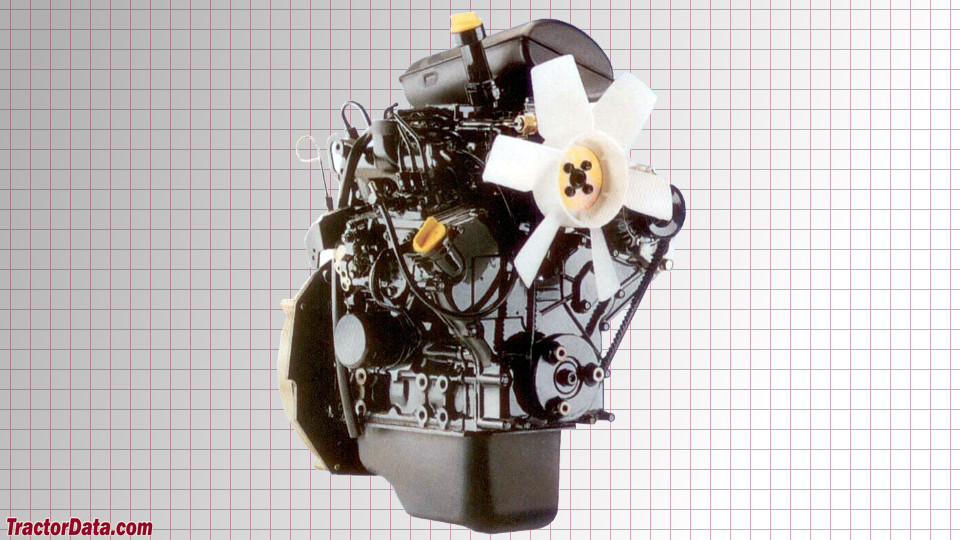

| John Deere 455 Engine |
 |
