John Deere 425
| | 1992 - 2001 |
| 400 Series | | Garden tractor |
|
Series map:
425
445
20.0hp
22.0hp
| Production |
| Manufacturer | John Deere
|
| Garden tractor |
| Built in Horicon, Wisconsin, USA |
| Original price was $8,995 in 1995 |
| Mechanical |
| Two-wheel drive |
| Differential lock | mechanical rear
|
| Steering | power
|
| | four-wheel steering optional
|
| Wet disc brakes |
| Open operator station. Cozy cab available with optional heater. |
| Hydraulics |
| Type | Gerotor
|
| Pressure | 1000 psi
69.0 bar
|
| Mid valves | 2 OptOptional
|
| Pump flow | 4.65 gpm
17.6 lpm
|
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Rear lift | 650 lbs
294 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent *Rear PTO optional. Tractor must be off for shifting between rear, mid, or both PTOs.
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO | independent
|
| Clutch | electro-hydraulic
|
| Mid PTO Type | 2000
|

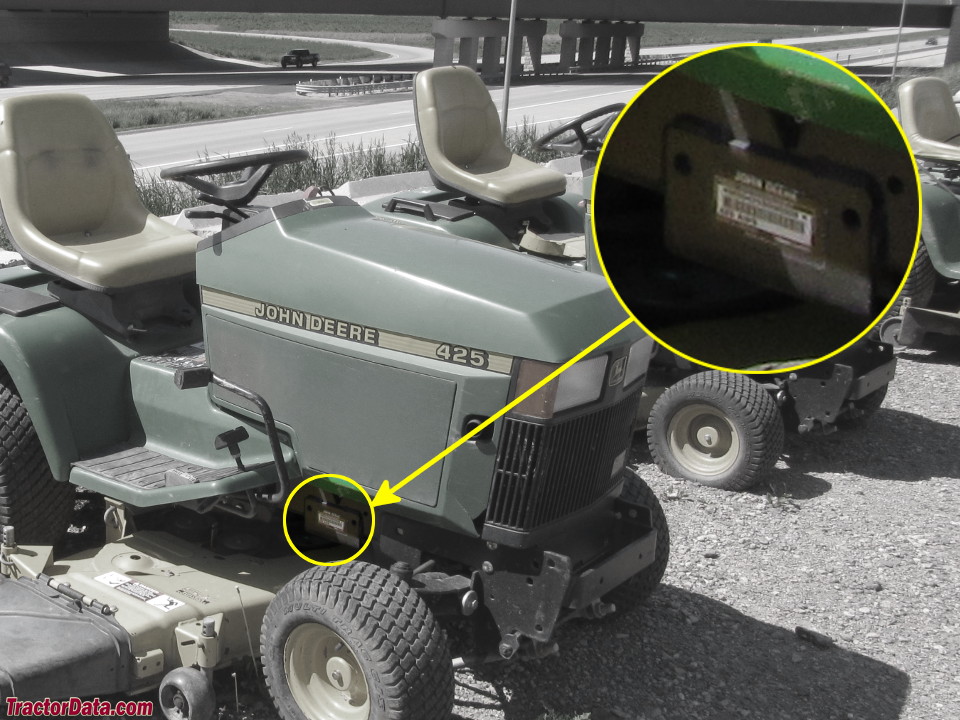

| 425 Serial Number Location |
 |
| Serial number decal on the right side of the 425 tractor frame, above and behind the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 20
|
| Battery CCA | 340
|
| Battery volts | 12
|
| Battery Group | U1
|
| References |
 |
| 400 Series Lawn and Garden Tractors published in 1993, by John Deere |
| 400 Series Lawn and Garden Tractors published in 1994, by John Deere |
| 400 Series Product Information Handbook published in 1992, by John Deere |
| Beauty or the Beast? published in 2000, by John Deere |
| Operator's Manual 425 and 445 (OMM117697) published in 1993 |
| Lawn and Garden Product Information Handbook published in 1996, by John Deere |
| Lawn and Garden Product Information Handbook published in 1997, by John Deere |
| Lawn and Garden Product Information Handbook published in 2000, by John Deere |
| Lawn and Garden Product Information Handbook published in 2001, by John Deere |
| John Deere Lawn and Garden Tractors published in 1995 |
| Lawn and Garden Tractors published in 1998, by John Deere |
| Lawn and Garden Tractors published in 2000, by John Deere |
| Lawn & Grounds Care Sales Manual published in 1997, by John Deere* |
| Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2000, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2001, by John Deere |
| Operator's Manual 40 Loader (OMM123903) published in 1996 |
| *Publication contains known errors. |
