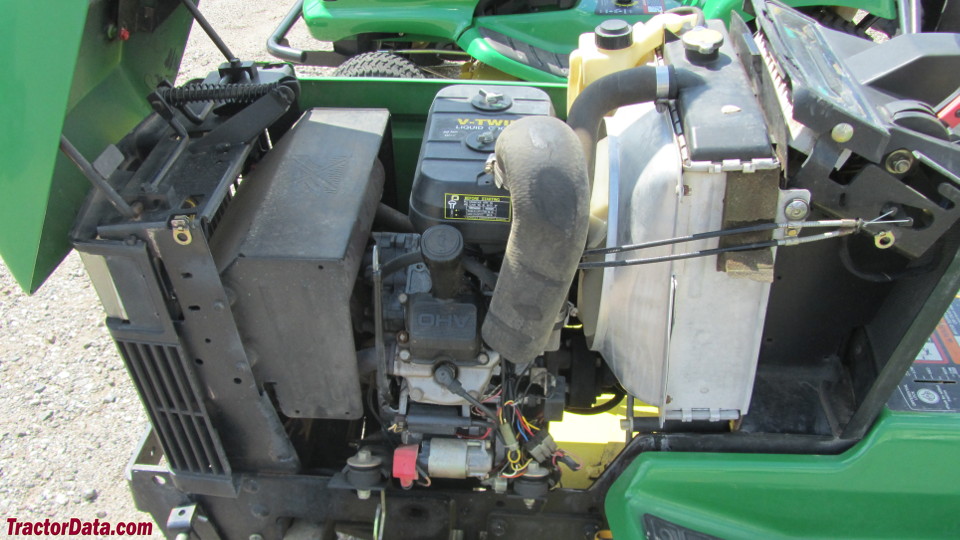

John Deere 425 Engine
|
|
| Engine Detail | |
| Kawasaki FD620D | |
| gasoline | |
| 2-cylinder | |
| liquid-cooled horizontal-shaft V-twin | |
| Early versions of the engine used plastic cam gears. Steel cams were used beginning with engine serial number 149283. | |
| Displacement | 617 cc 37.7 ci |
| Bore/Stroke | 2.992x2.68 inches 76 x 68 mm |
| Power | 20 hp 14.9 kW |
| Fuel system | carburetor |
| Air cleaner | paper element with pre-cleander |
| Compression | 9:1 |
| Rated RPM | 3550 |
| Idle RPM | 1450-3550 |
| Starter | electric |
| Starter volts | 12 |
| Starter power | 1.1 hp 0.8 kW |
| Coolant capacity | 3 qts 2.8 L |
| Sparkplug gap | 0.030 inches 0.762 mm |

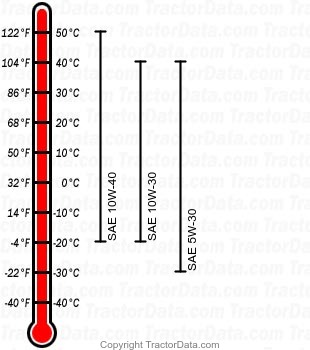

| Engine Oil | |
| |
| Oil capacity | 1.6 qts 1.5 L |
