John Deere 400
| | 1975 - 1983 |
| 400 Series | | Garden tractor |
|
| Production |
| Manufacturer | John Deere
|
| Garden tractor |
| Built in Horicon, Wisconsin, USA |
| Mechanical |
| Two-wheel drive |
| Power steering |
| Mechanical shoe brakes |
| Open operator station. |
| Capacity |
| Fuel | 4.5 gal
17.0 L
|
| Hydraulic system | 1.375 gal
5.2 L
|
| Hydraulics |
| Capacity | 1.375 gal
5.2 L
|
| Front valves | 2
|
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | independent OptOptional
|
| Clutch | mechanical *Linked to the front PTO.
|
| Rear PTO Type | drilled shaft
|
| Engine RPM | 840@3500
|
| Front PTO | independent
|
| Clutch | mechanical
|
| Front PTO Type | 2100
|
| 400 Serial Number Location |
 |

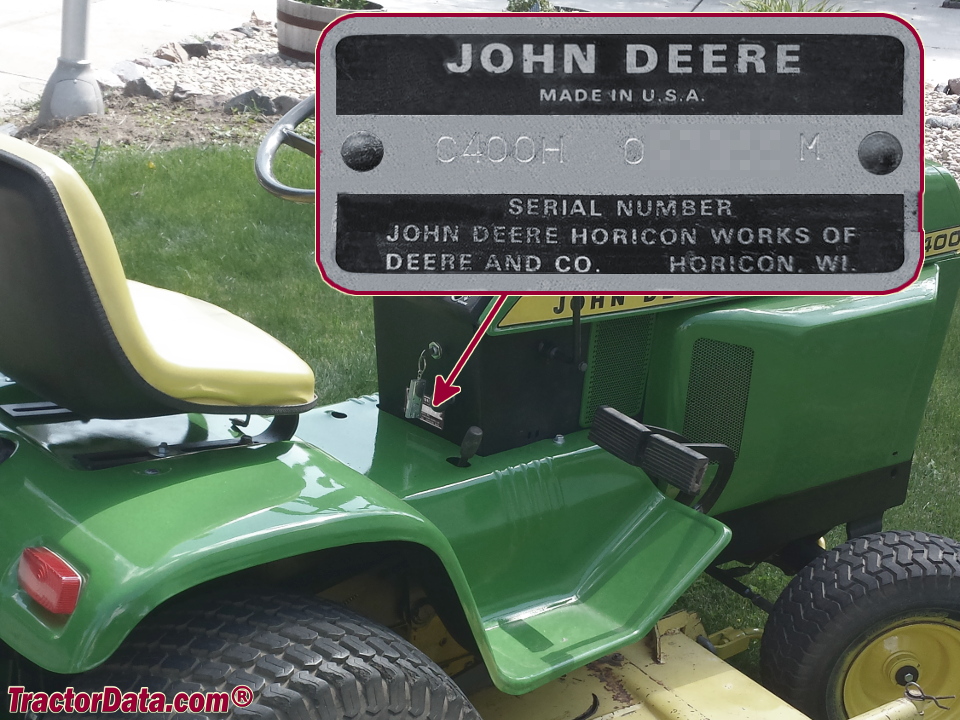

| Serial number plate below the steering column on the John Deere 400. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Questions |
We are looking for the solenoid that makes the garden tractor work. The part number we have is: AM 35712. We believe this is the correct part.
AM 35712 is the solenoid that controls the throttle plate. AM53945 is the solenoid for the starter.
|
| Email: Peter@TractorData.com |
| References |
 |
| Operator's Manual 400 Hydrostatic Tractor (OM-M48676) published in 1975 |
| Lawn and Garden Tractors published in 1975, by John Deere |
| Lawn and Garden Tractors published in 1976, by John Deere |
| Lawn and Garden Tractors published in 1978, by John Deere |
| Lawn and Garden Tractors published in 1979, by John Deere |
| John Deere Lawn & Garden Equipment published in 1980 |
| Lawn and Garden Tractors published in 1980, by John Deere |
| Lawn and Garden Tractors published in 1982, by John Deere |
| Introducing the John Deere lawn and garden line for 1979 |
| John Deere Lawn and Garden Equipment published in 1978 |
| Matched Working Equipment for John Deere Lawn and Garden Tractors published in 1975 |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 11, 2024 |
