John Deere 312


John Deere 312 tractor photo
1977 - 1978
300 Series
Garden tractor
Series map:
312
316
12.0hp
16.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
John Deere 312 Engine
12HP Kohler 476cc 1-cyl gasoline
Engine details ...
Mechanical
Two-wheel drive
Open operator station.
Tractor hitch
Typesleeve hitch OptOptional
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight760 lbs
344 kg
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
John Deere 312 attachments
38" mid-mount mower deck
46" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
312 Serial Number Location

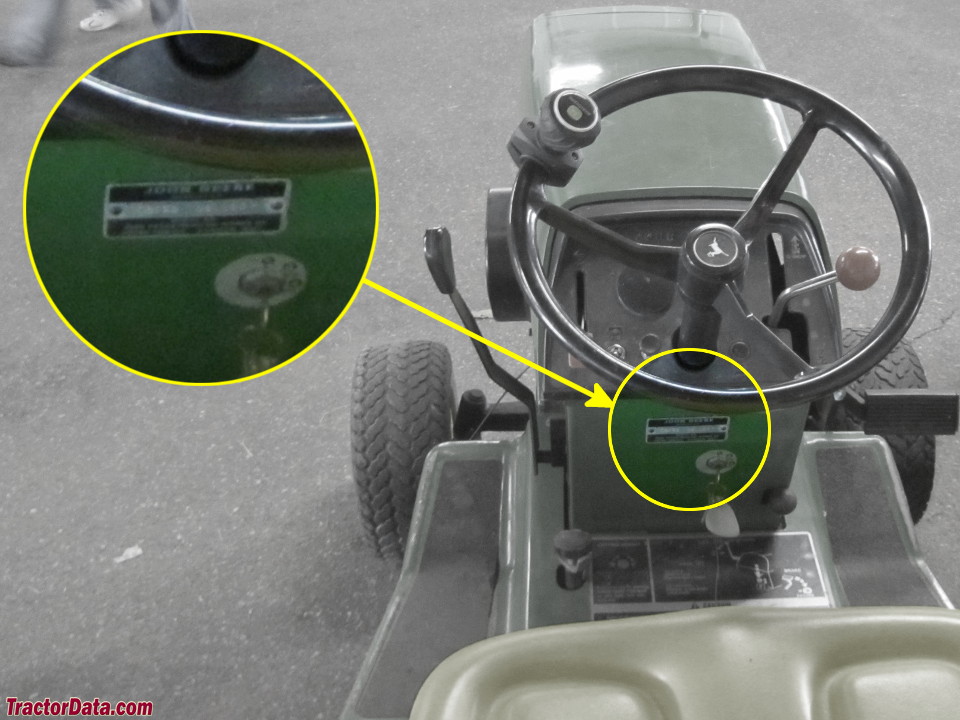

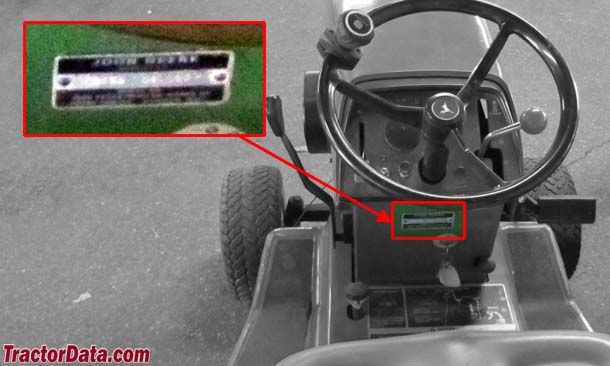

John Deere 312 serial number location
Serial number plate located below the steering wheel on the John Deere 312.
312 Serial Numbers
1977C312F070001
1978C312G080001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
312 references literature
Lawn and Garden Tractors published in 1978, by John Deere
Operator's Manual 41 and 48 Rotary Mowers (OMM49677)
Operator's Manual 49 Snowthrower (OMM89078) published in 1986
