| | 1987 - 1992 |
| Late 200 Series | | Garden tractor |
|
Series map:
265
285
17.0hp
18.0hp
| Engine Detail |
| Kawasaki FD590V |
| gasoline |
| 2-cylinder |
| liquid-cooled vertical-shaft |
| The engine was available in a fuel-injected version for the 1989 model year. |
| Displacement | 585 cc
35.7 ci
|
| Bore/Stroke | 2.91x2.68 inches
74 x 68 mm
|
| Power (gross) | 18 hp
13.4 kW
|
| Fuel system | carburetor
|
| | electronic-fuel injected OptOptional
|
| Air cleaner | foam precleaner with paper filter
|
| Compression | 8.7:1
|
| Rated RPM | 3400
|
| Idle RPM | 1400-3350
|
| Starter volts | 12
|
| Coolant capacity | 3.3 qts
3.1 L
|

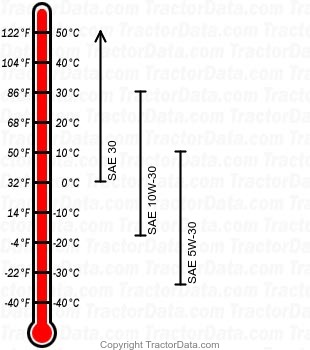

| Engine Oil |
|
| Oil capacity | 2.6 qts
2.5 L
|
| Oil change | 50 h
|

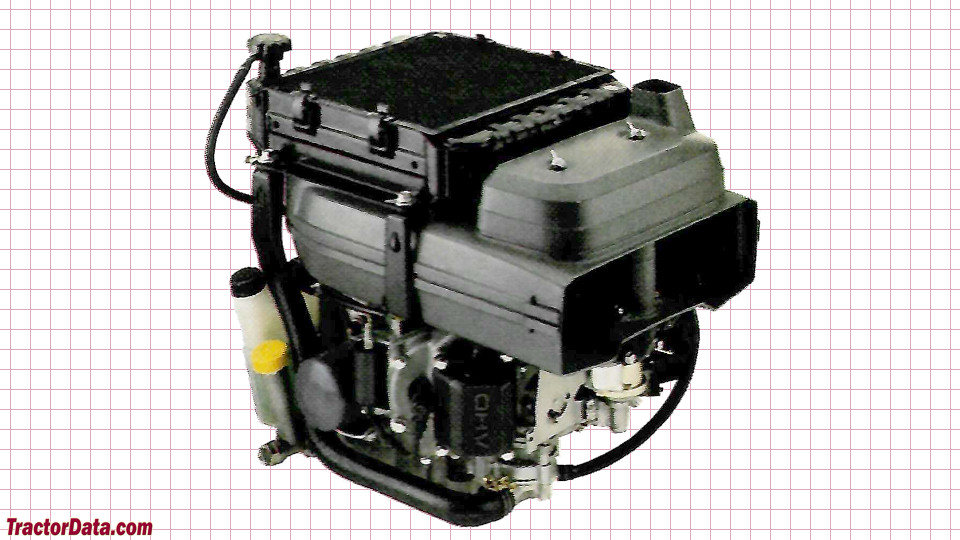

| John Deere 285 Engine |
 |
