John Deere 212
|
|
| Production | |
| Manufacturer | John Deere |
| Garden tractor | |
| Built in Horicon, Wisconsin, USA | |
| Original price was $3,239 in 1983 | |
| John Deere 212 Engine | |
| 12HP Kohler 476cc 1-cyl gasoline | |
| Fuel tank | 3.5 gal 13.2 L |
 Engine details ... | |
| John Deere 212 Transmission | |
| 4-speed variator | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Band brakes | |
| Open operator station. |

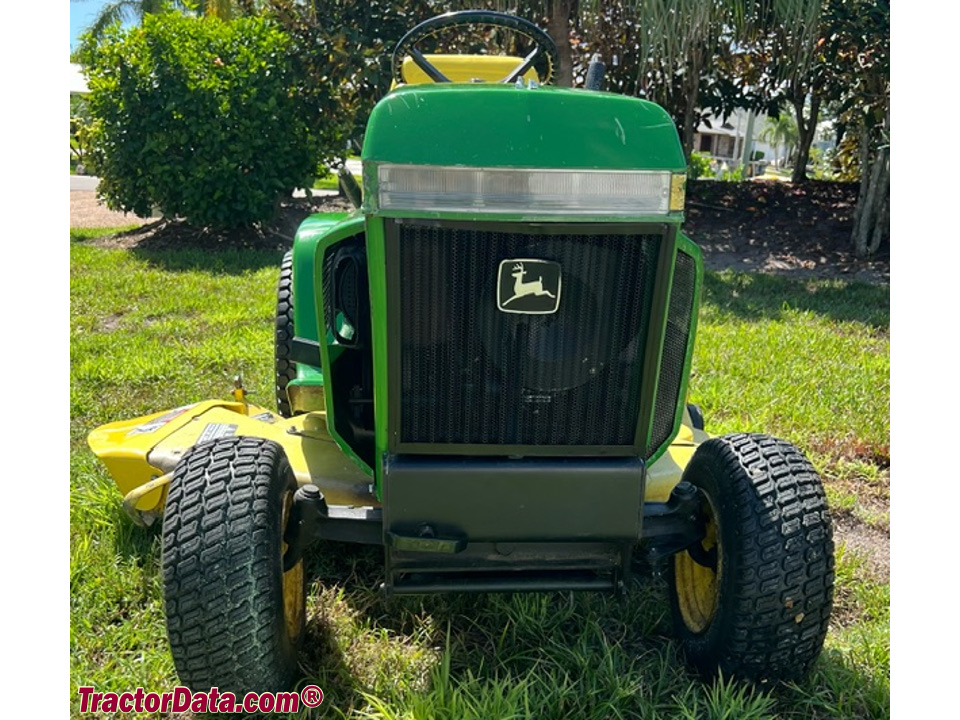

| Photos | |
 | |
 John Deere 212 photos... | |
| Tractor hitch | |
| Type | sleeve hitch OptOptional |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Dimensions & Tires | |
| Wheelbase | 46 inches 116 cm |
| Weight | 690 lbs 312 kg |
| Front tire | 16x6.50-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| John Deere 212 attachments | |
| 38" mid-mount mower deck | |
| 46" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

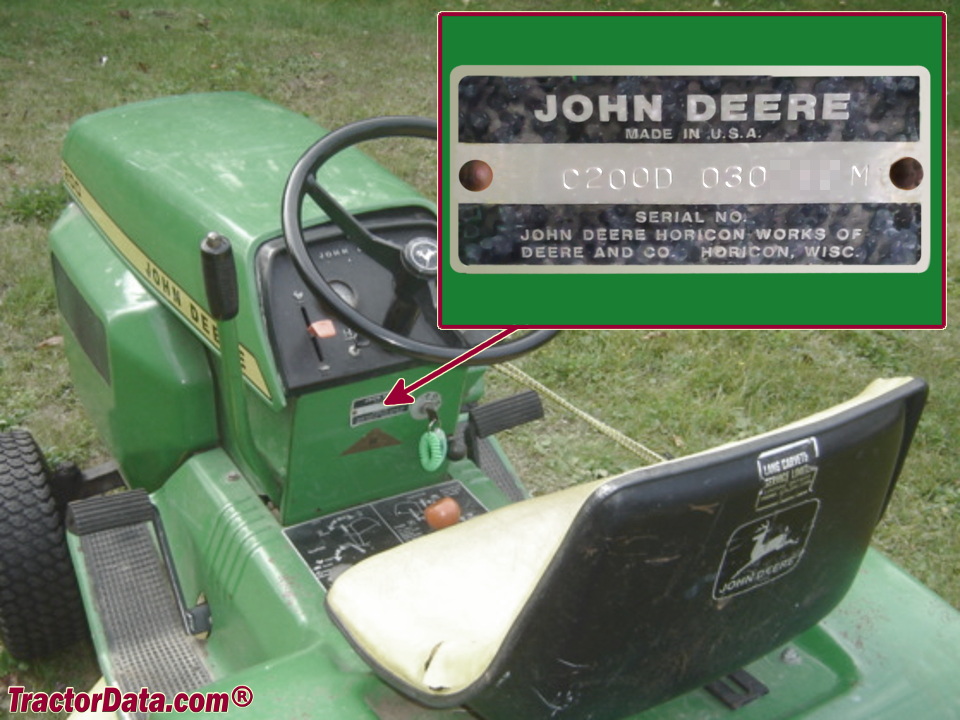

| 212 Serial Number Location | |
 | |
| Serial number plate below the steering column. |
| 212 Serial Numbers | |
| 1975 | 30001 |
| 1976 | 55001 |
| 1977 | 70001 |
| 1978 | 80001 |
| 1979 | 95001 |
| 1980 | 120001 |
| 1981 | 155001 |
| 1982 | 190001 |
| 1983 | 222001 |
| 1984 | 285001 |
| 1985 | 315001 |
| 1986 | 360001 |
| 1987 | 420001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery volts | 12 |
| References | |
 | |
| Lawn and Garden Tractors published in 1975, by John Deere | |
| Lawn and Garden Tractors published in 1976, by John Deere | |
| Lawn and Garden Tractors published in 1978, by John Deere | |
| Lawn and Garden Tractors published in 1979, by John Deere | |
| John Deere Lawn & Garden Equipment published in 1980 | |
| Lawn and Garden Tractors published in 1980, by John Deere | |
| Lawn and Garden Tractors published in 1982, by John Deere | |
| Lawn & Garden Tractors published in 1983, by John Deere | |
| Lawn & Garden Tractors published in 1984, by John Deere | |
| Lawn & Garden Tractors published in 1985, by John Deere | |
| Lawn & Garden Tractors published in 1986, by John Deere | |
| Introducing the John Deere lawn and garden line for 1979 | |
| John Deere Lawn and Garden Equipment published in 1978 | |
| Consumer Products Price List published in 1983, by John Deere | |
| Grounds Care Equipment Purchasing Guide published in 1983, by John Deere | |
 | |
| Operator's Manual 200, 210, 212, and 214 (OM-M48245) published in 1975 | |
| Operator's Manual 210, 212, 214, and 216 (OM-M83517) published in 1979 | |
| Service Manual 200, 210, 212 and 214 (SM-2105) published in 1976 | |
| Operator's Manual 31 Integral Rotary Tiller (OMM49210) | |
| Operator's Manual 37A Snowthrower (OMM89616) | |
| Operator's Manual 38-Inch Mid-Mount Rotary Mower (200 and 300 Series) (OMM71721) published in 1986 | |
| Operator's Manual 39 and 47 Rotary Mowers (OMM48953) | |
| Operator's Manual 39 Rotary Mower (OMM86121) |
