| | 1975 - 1987 |
| 200 Series | | Garden tractor |
|
Series map:
210
212
214
10.0hp
12.0hp
14.0hp
| Engine Detail |
| Kohler K301AQS |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 476 cc
29.1 ci
|
| Bore/Stroke | 3.375x3.25 inches
86 x 83 mm
|
| Power (gross) | 12 hp
8.9 kW
|
| Air cleaner | dry
|
| Idle RPM | 1700-3500
|
| Starter volts | 12
|

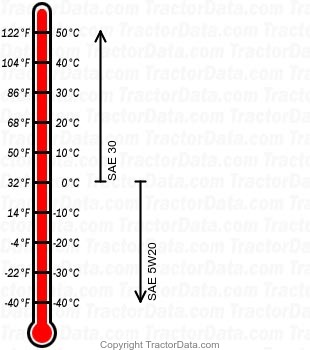

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 25 h
|

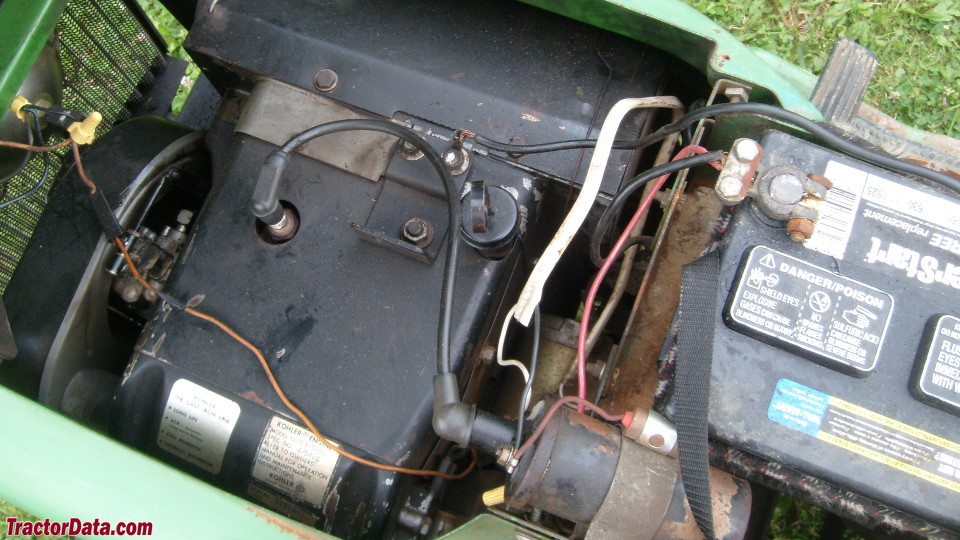

| John Deere 212 Engine |
 |
| Image courtesy of Jim H. |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 14, 2023 |
