| | 1975 - 1987 |
| 200 Series | | Garden tractor |
|
Series map:
208
210
212
8.0hp
10.0hp
12.0hp
| Engine Detail |
| Kohler K241QS |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 390 cc
23.85 ci
|
| Bore/Stroke | 3.25x2.875 inches
83 x 73 mm
|
| Power (gross) | 10 hp
7.5 kW
|
| Air cleaner | dry
|
| Idle RPM | 1700-3500
|
| Starter volts | 12
|

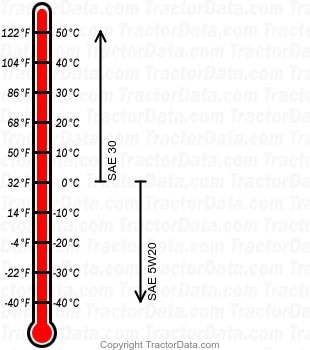

| Engine Oil |
|
| Oil capacity | 1.5 qts
1.4 L
|
| Oil change | 25 h
|
