Lawn Tractors > John Deere > 200

John Deere 200 Transmission



John Deere 200 tractor photo
1975 - 1976
200 Series
Garden tractor
Series map:
200
8.0hp
Transmission
TransmissionPeerless 2300
Typebelt-driven gear
Gears4 forward and 1 reverse
Oil capacity1.75 qts
1.7 L
Oil type
AM30200
SAE90
Four gears and reverse with variable speed lever. Tractor must be stopped and clutch used to shift between gears. Variable speed lever may be used while the tractor is in motion without clutching.

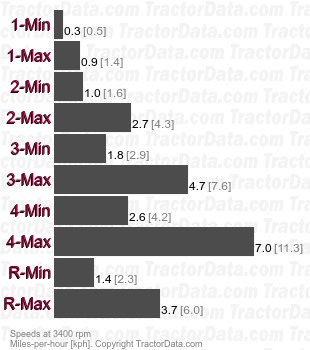

Speeds
200 2300 belt-driven gear speeds
