Lawn Tractors > John Deere > 140

John Deere 140



John Deere 140 tractor photo
1968 - 1974
100 Series
Garden tractor
Series map:
120
140
12.0hp
12.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price$1,570 (1974 H1 )
$1,745 (1974 H3 )
The John Deere model 140 was built in two basic versions, the 140H1 and the 140H3. The H3 featured three hydraulic valves, providing the ability to operate multiple attachments.
Variants
140H3three hydraulic remotes
John Deere 140 Engines
12HP Kohler 476cc 1-cyl gasoline
14HP Kohler 512cc 1-cyl gasoline
Fuel tank1.75 gal
6.6 L
Engine details ...
John Deere 140 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Brakesintegral mechanical disc (1968)
 differential mechanical disc (1969-1970)
 drum (1971 on)
Open operator station.
Photos
John Deere 140 H1 garden tractor.
John Deere 140 photos...
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Rear PTOlive
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight730 to 770 pounds
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
John Deere 140 attachments
38" mid-mount mower deck
46" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...

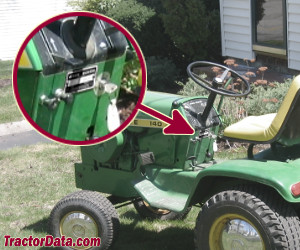

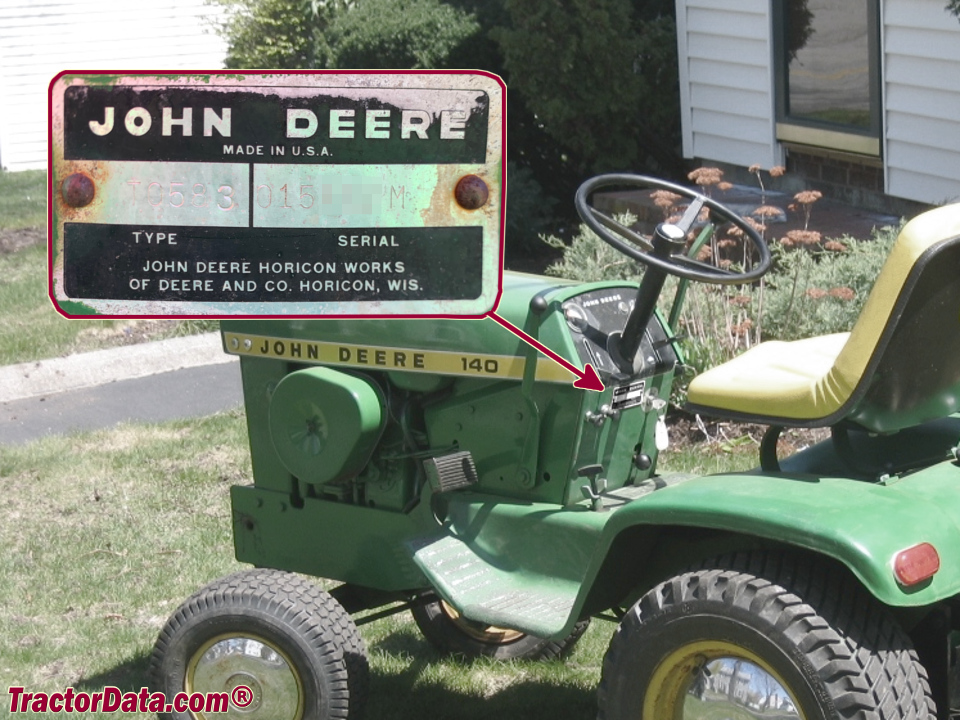

140 Serial Number Location
John Deere 140 serial number location
Below steering column or on the right side of tractor, just inside the hood.
140 Serial Numbers
19681001
196910001
197022401
197130001
197238001
197346501
197456501
FinalUnknown

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
Battery AH40
References

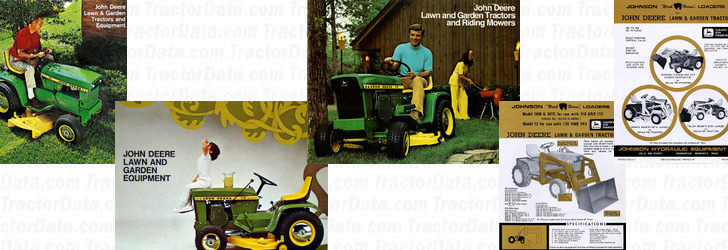

140 references literature
John Deere Lawn & Garden Tractors and Equipment published in 1968
Lawn and Garden Equipment published in 1970, by John Deere
Lawn and Garden Tractors and Riding Mowers published in 1973, by John Deere
Loaders for John Deere Lawn & Garden Tractors published in 1970, by Johnson
Loaders for John Deere Lawn & Garden Tractors published in 1971, by Johnson

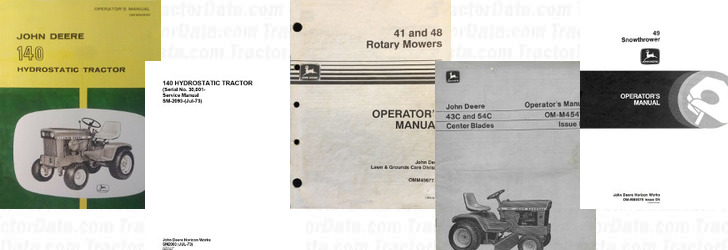

140 manuals literature
Operator's Manual 140 (OM-M42630) published in 1968
Service Manual 140 Hydrostatic Tractor Serial No. (30,001-) (SM-2093) published in 1973
Operator's Manual 41 and 48 Rotary Mowers (OMM49677)
Operator's Manual 43C and 54C Center Blade (OMM45478) published in 1970
Operator's Manual 49 Snowthrower (OMM89078) published in 1986
