Lawn Tractors > John Deere > 140

John Deere 140 Attachments



John Deere 140 tractor photo
1968 - 1974
100 Series
Garden tractor
Series map:
120
140
12.0hp
12.0hp
Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
Snowblower
Blade
Front-end loader
The 140 was compatible with the model 33 tiller with 26-, 34-, or 42-inch width.
38" Mower deck
John Deere 41
38 inches
96 cm
Total width: 49.25 inches
125 cm
3-blade
hydraulic lift
right-discharge
Cut height: 1.5 to 3.5 inch
3 to 8 cm
111 lbs
50 kg
46" Mower deck
John Deere 48
46 inches
116 cm
Total width: 57 inches
144 cm
3-blade
hydraulic lift
right-discharge
Cut height: 1.5 to 3.5 inch
3 to 8 cm
144 lbs
65 kg
1968 John Deere 140 with Haban 416 sickle mower.
1968 John Deere 140 with Haban 416 sickle mower.
Photos courtesy of Dave M.
Snow blower mounted on the John Deere 140.
Snow blower mounted on the John Deere 140.
Photos courtesy of Allen Schweitzer
Rear view of the John Deere 140 with tiller.
Rear view of the John Deere 140 with tiller.
Photos courtesy of Allen Schweitzer
John Deere 140 with hydraulic front blade.
John Deere 140 with hydraulic front blade.
John Deere 140 with blade, right side.
John Deere 140 with blade, right side.
Photos courtesy of Craig Davis
54" Blade
John Deere 54
front-mount
54 inches width
137 cm
18 inches height
45 cm
15 inches lift
38 cm
Angling 30°
3.5 inches cut
8 cm
140 lbs
63 kg
hydraulic-lift
manual-angle
54" Blade
John Deere 54C
center-mount
54 inches width
137 cm
3 inches lift
7 cm
Angling 20°
0.75 inches cut
1 cm
104 lbs (manual)
47 kg
112 lbs (hydraulic)
50 kg
hydraulic-lift
manual-angle
hydraulic -angleOptOptional
46" Snow blower
John Deere 49
46 inches width
116 cm
one-stage
front-mount
hydraulic-lift
197 lbs
89 kg

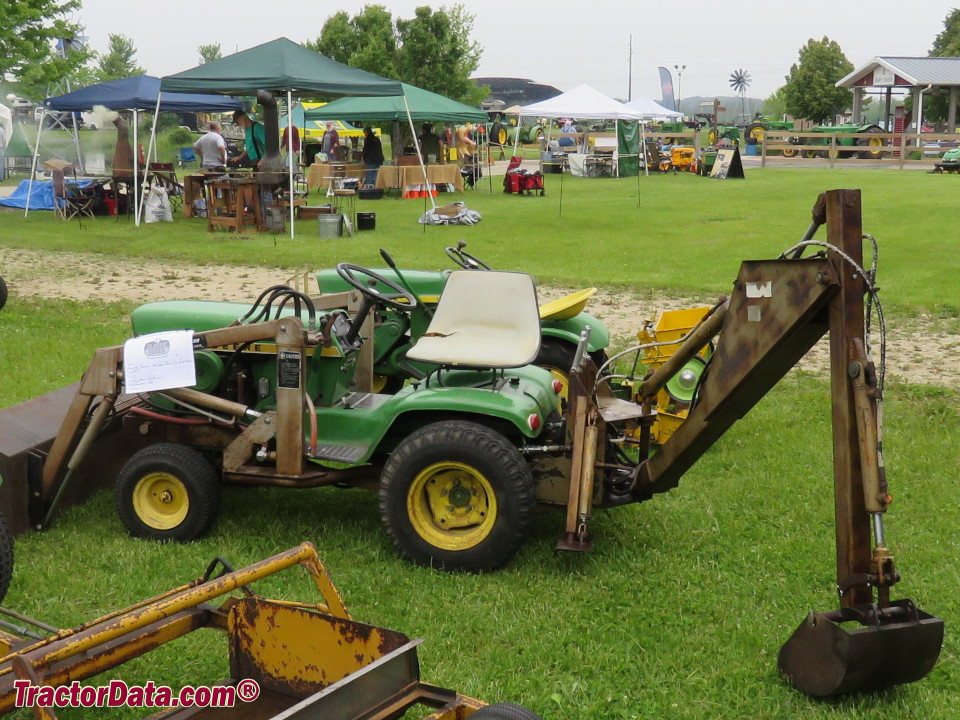

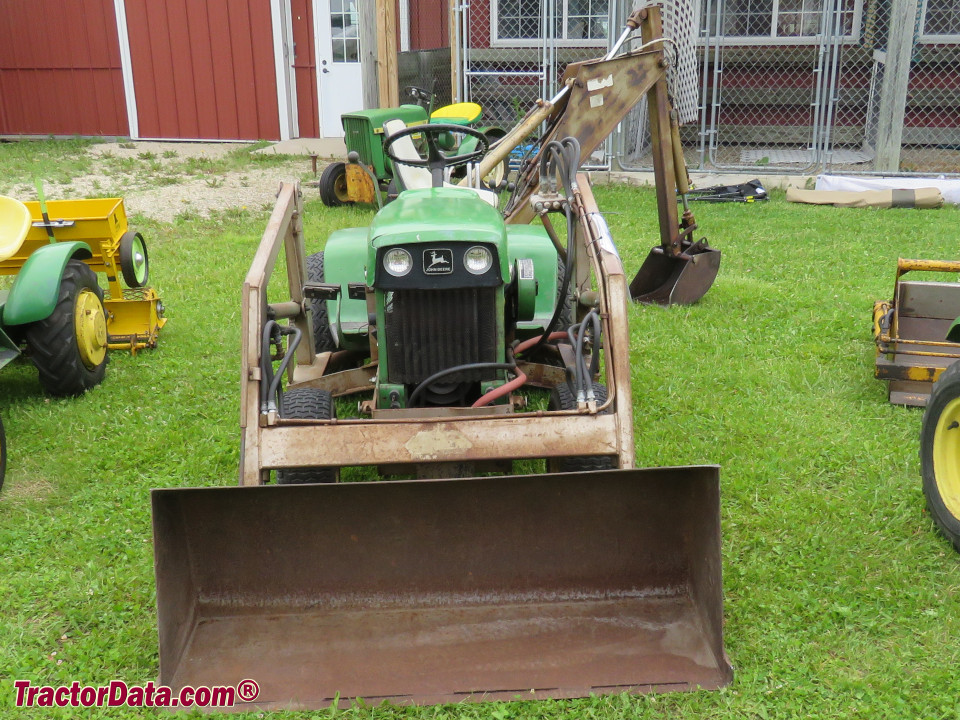

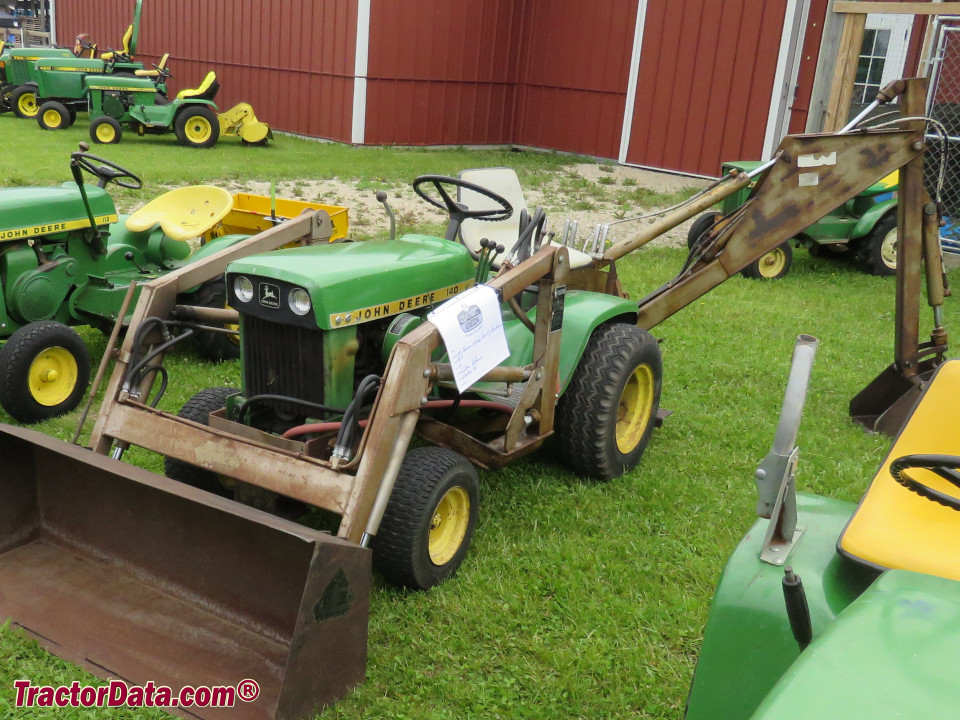

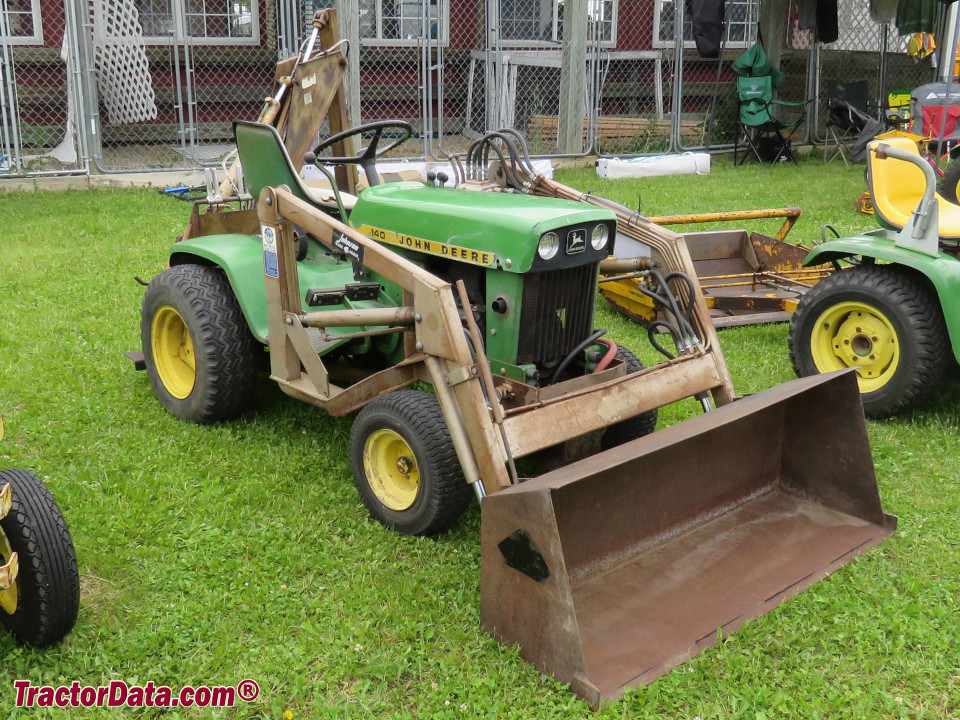

Johnson 12 Loader
500 lbs lift (full at pin)
226 kg
47° dump
16 inches reach (dumped)
40 cm
69.5 inches height (at pin)
176 cm
54 inches clearance (dumped)
137 cm
67 inches clearance (level)
170 cm
weight: 410 lbs
185 kg
Bucket width: 38 inches
96 cm
Bucket width: 48 inches
121 cm
