Lawn Tractors > John Deere > 135

John Deere 135 Engine



John Deere 135 tractor photo
2006
Lawn tractor
Series map:
125
135
145
20.0hp
22.0hp
22.0hp
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled
Displacement724 cc
44.2 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power22 hp
16.4 kW
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.010 inches
0.254 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

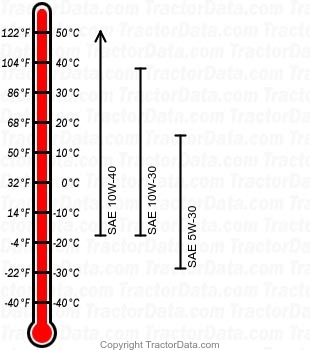

135 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
