J.I. Case 1150 Engine
|
|
| Engine Detail | |
| J.I. Case A-401-D | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement | 401 ci 6.6 L |
| Bore/Stroke | 4.125x5.00 inches 105 x 127 mm |
| Power (net) | 85 hp 63.4 kW |
| Power (gross) | 105 hp 78.3 kW |
| Air cleaner | dry |
| Compression | 16.5:1 |
| Rated RPM | 1850 |
| Idle RPM | 750-2030 |
| Torque | 302 lb-ft 409.5 Nm |
| Torque RPM | 1250 |
| Firing order | 1-5-3-6-2-4 |
| Starter | electric |
| Starter volts | 24 |
| Coolant capacity | 13 qts 12.3 L |
| Intake valve clearance | 0.015 inches (cold) 0.381 mm |
| Exhaust valve clearance | 0.025 inches (cold) 0.635 mm |

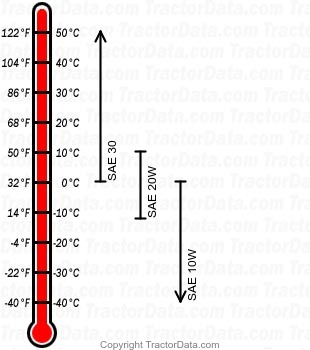

| Engine Oil | |
| |
| Oil capacity | 15 qts 14.2 L |
| Oil change | 120 h |
