J.I. Case 425 Transmission


J.I. Case 425 tractor photo
1955 - 1957
400 Series
Industrial tractor
Transmission options
8-speed
8-speed mechanical shuttle
Transmission
TransmissionPowr-range
Gears8 forward and 2 reverse
Clutch304.8mm dry disc
Oil capacity60 qts
56.8 L
Oil type
SAE 90
Four gears plus reverse, with high and low ranges. All gears and ranges selected by a single lever.

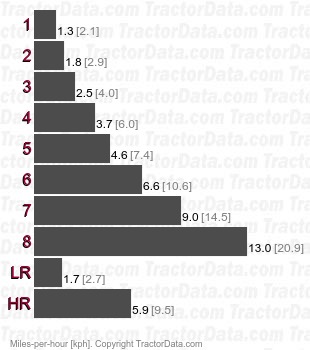

Speeds
With 13-30 rear tires.
425 Powr-range  speeds
Transmission
Typemechanical shuttle
Gears8 forward and reverse
Clutch304.8mm dry disc
