Caterpillar D5C Series III Engine


Caterpillar D5C Series III tractor photo
1991 - 2001
Model year
Bulldozer
Series map:
D5C
100.0hp
Engine Detail
Caterpillar 3046T
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement305 ci
5.0 L
Bore/Stroke3.70x4.72 inches
94 x 120 mm
Power (net)91 hp
67.9 kW
Power (gross)100 hp
74.6 kW
Fuel systemdirect injection
Rated RPM2400
Starterelectric
Starter volts12
Oil capacity13.6 qts
12.9 L
Coolant capacity22 qts
20.8 L

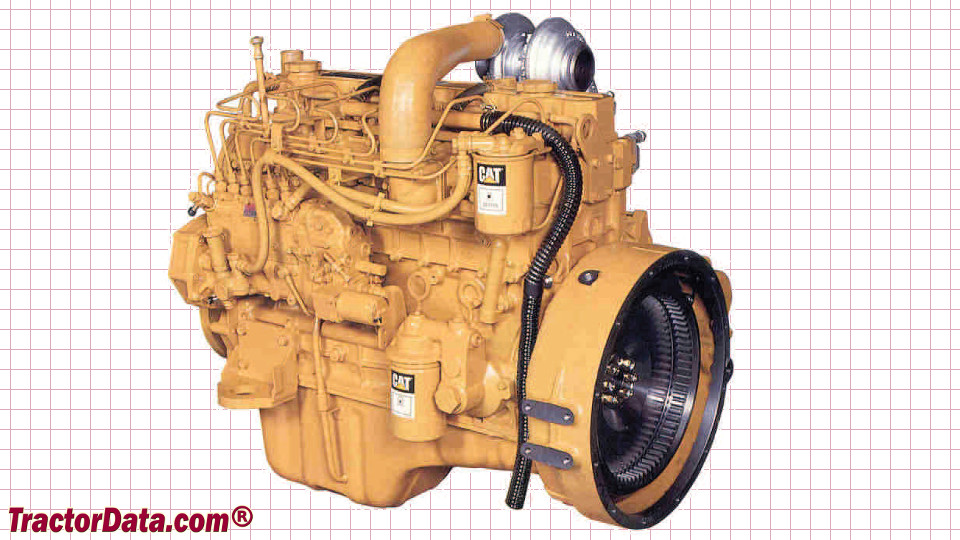

Caterpillar D5C Engine
Caterpillar D5C engine image
