Tractors > Caterpillar > D7H

Caterpillar D7H



Caterpillar D7H tractor photo
1985 - 1995
Model year
Bulldozer
Series map:
D7H
231.0hp
Production
ManufacturerCaterpillar
Bulldozer
Caterpillar D7H Engine
Caterpillar 10.5L 6-cyl diesel
Engine details ...
Caterpillar D7H Transmissions
6-speed direct drive
3-speed power shift
Transmission details ...
Caterpillar D7H Power
Engine (gross)231 hp
172.3 kW
Engine (net)215 hp
160.3 kW
Mechanical
Drivecrawler
Final drivesdouble-reduction planetary
ROPS. Cab available with air-conditioning.
Photos
No photos of the Caterpillar D7H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel126 gal
476.9 L
Hydraulic system17.5 gal
66.2 L
Hydraulics
Typeopen center
Capacity17.5 gal
66.2 L
Pressure3300 psi
227.5 bar
Pump flow46.2 gpm
174.9 lpm
Dimensions & Tracks
Weight39663 to 50426 pounds
20-inch tracks
Full dimensions and tracks ...
Caterpillar D7H attachments
blade
Attachment details ...
Electrical
Charging systemalternator
Charging amps35
 50 OptOptional
Battery volts12
References

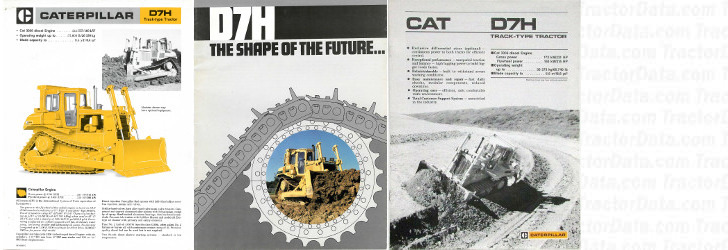

D7H references literature
D7H Track-type Tractor published in 1985, by Caterpillar
D7H the shape of the future published in 1985, by Caterpillar
D7H Track-Type Tractor published in 1987, by Caterpillar
