Caterpillar D8N
Production Manufacturer Caterpillar
Bulldozer
Caterpillar D8N Power Engine (gross) 306 hp228.2 kW
Engine (net) 285 hp212.5 kW
Mechanical Drive crawler
Final drives double reduction planetary
Four-post ROPS. Cab available with heat and air-conditioning.
Photos No photos of the Caterpillar D8N are currently available. To submit yours, email it to Peter@TractorData.com . Photos may only be used with the permission of the original photographer.
Capacity Fuel 127.1 gal481.1 L
Hydraulic system 15.1 gal57.2 L
Hydraulics Capacity 15.1 gal57.2 L
Pressure 3500 psi241.3 bar
Pump flow 74 gpm280.1 lpm
Electrical Charging system alternator
Charging amps 50
Battery volts 12

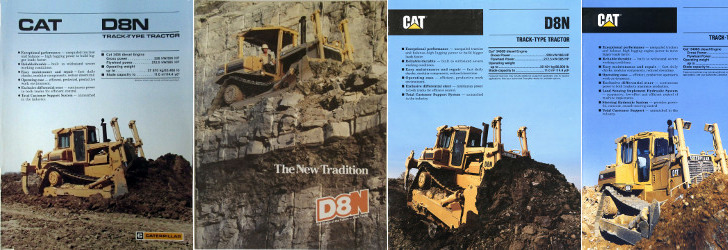

References D8N Track-Type Tractor published in 1987, by Caterpillar The New Tradition D8N published in 1987, by Caterpillar D8N Track-Type Tractor published in 1990, by Caterpillar D8N Track-Type Tractor published in 1992, by Caterpillar
