Ventrac 4520K
|
|
| Production | |
| Manufacturer | Ventrac (a part of Toro) |
| Groundskeeping tractor | |
| Original price was $24,225 in 2022 | |
| Ventrac 4520K Engine | |
| Vanguard 0.9L 2-cyl gasoline | |
| Fuel tank | 6 gal 22.7 L |
 Engine details ... | |
| Ventrac 4520K Transmission | |
| hydrostatic | |
 Transmission details ... |
| Ventrac 4520K Power | |
| Engine (gross) | 31 hp 23.1 kW |
| Mechanical | |
| Four-wheel drive | |
| Articulated power steering | |
| Mechanical band brakes | |
| Two-post folding ROPS. Cab optional with available heat. |
| Photos | |
| No photos of the Ventrac 4520K are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Tractor hitch | |
| Rear Type | I OptOptional |
| Type | Ventrac Mount System |
| Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electrio-magnetic |
| Dimensions & Tires | |
| Wheelbase | 45 inches 114 cm |
| Weight | 1340 lbs 607 kg |
| Front tire | 22x12-8 |
| Rear tire | 22x12-8 |
 Full dimensions and tires ... | |
| 4520K Serial Numbers | |
| Location: | Serial number plate on the left side of the front unit, below the steering column. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 50 |
| Battery CCA | 475 |
| Battery volts | 12 |
| References | |
 | |

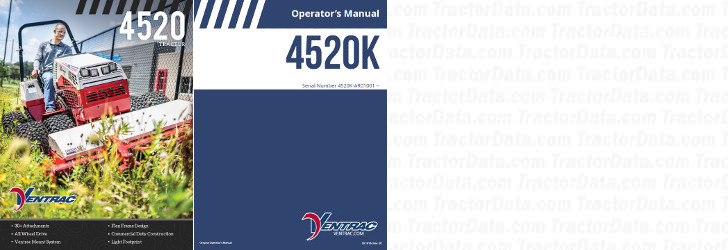

| 4520 published in 2021, by Ventrac | |
| Operator's Manual 4520K (09.10184) published in 2021 |
