John Deere 540A

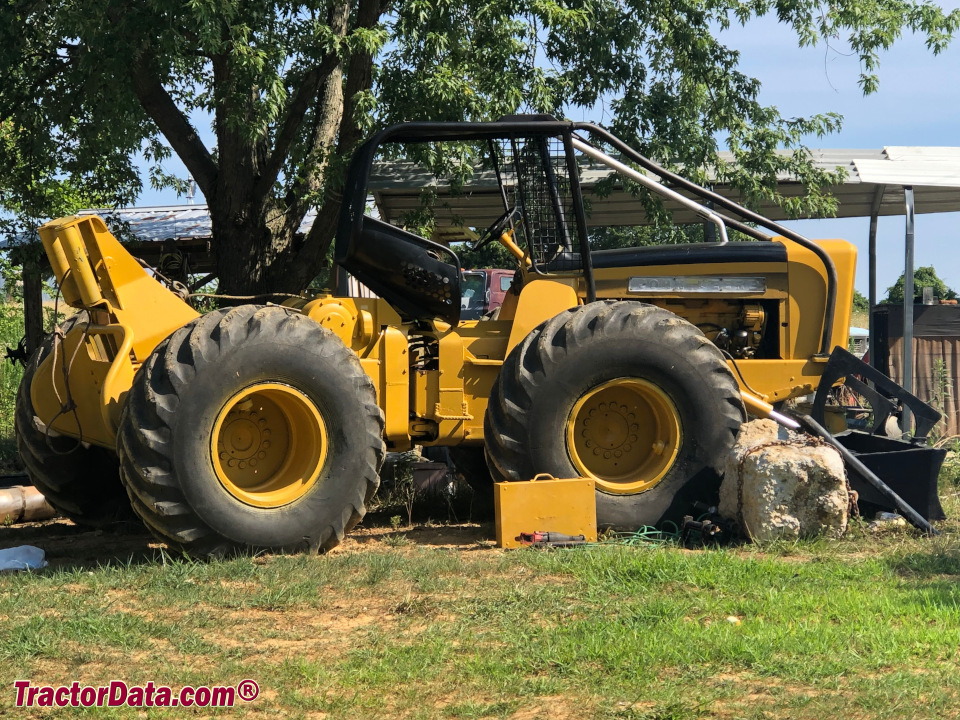

John Deere 540A tractor photo
???? - 1975
Skidder
Series map:
540A
104.0hp
Production
ManufacturerJohn Deere
Skidder
FactoriesDubuque, Iowa, USA
 Welland, Ontario, Canada
John Deere 540A Engine
John Deere 5.4L 6-cyl diesel
Engine details ...
John Deere 540A Transmission
8-speed full power shift
Transmission details ...
John Deere 540A Power
Engine (gross)104 hp
77.6 kW
Engine (net)94 hp
70.1 kW
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockhydraulic front
Articulated power steering
Hydraulic disc brakes
Four-post ROPS.
Photos
No photos of the John Deere 540A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel42 gal
159.0 L
Front diff.32 qts
30.3 L
Rear axle18 qts
17.0 L
Hydraulics
Typeclosed center
Pressure2000 psi
137.9 bar
Pump flow28 gpm
106.0 lpm
Dimensions & Tires
Wheelbase103.5 inches
262 cm
Weight12850 lbs
5828 kg
Front tire18.4-26
Rear tire18.4-26
Full dimensions and tires ...
Electrical
Charging systemalternator
Battery volts12
References
540A references literature
Construction Purchasing Guide published in 1973, by John Deere
Construction Purchasing Guide published in 1974, by John Deere
