J.I. Case W-5 Engine


J.I. Case W-5 tractor photo
1959 - 1962
Wheel Loader
Series map:
W-5
W-9
57.0hp
69.5hp
Engine options
J.I. Case 3.1L 4-cyl diesel
J.I. Case 3.1L 4-cyl gasoline
Engine Detail
J.I. Case G-188D
diesel
4-cylinder
liquid-cooled inline
Displacement188 ci
3.1 L
Bore/Stroke3.8125x4.125 inches
97 x 105 mm
Power (gross)57 hp
42.5 kW
Air cleanerdry
Rated RPM2250
Torque150 lb-ft
203.4 Nm
Torque RPM1500
Starterelectric
Starter volts12
Oil capacity5 qts
4.7 L
Coolant capacity18 qts
17.0 L
J.I. Case W-5 Engine

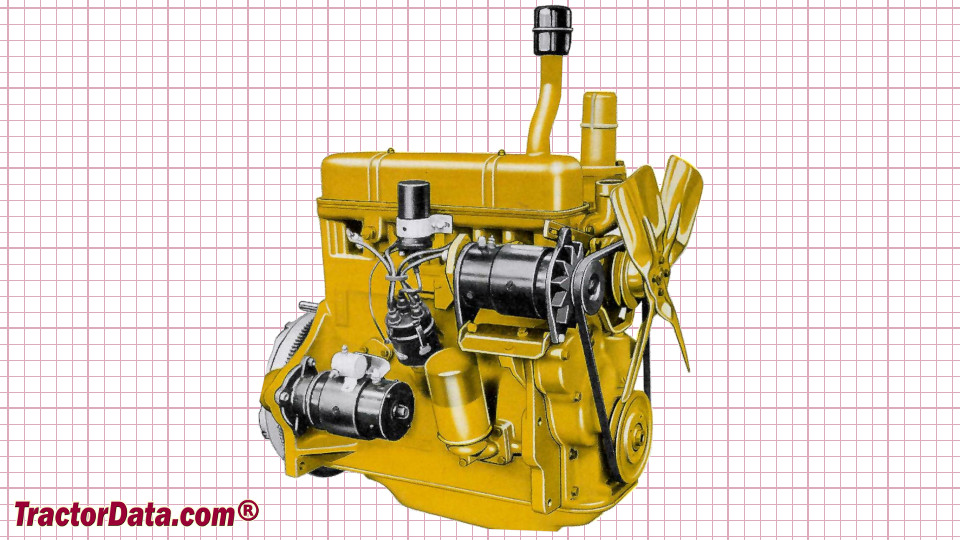

J.I. Case W-5 engine image
Engine Detail
J.I. Case G-188
gasoline
4-cylinder
liquid-cooled inline
Displacement188 ci
3.1 L
Bore/Stroke3.8125x4.125 inches
97 x 105 mm
Power (gross)57 hp
42.5 kW
Fuel systemcarburetor
Air cleanerdry
Rated RPM2250
Torque162 lb-ft
219.7 Nm
Torque RPM1200
Starterelectric
Starter volts12
J.I. Case W-5 Engine

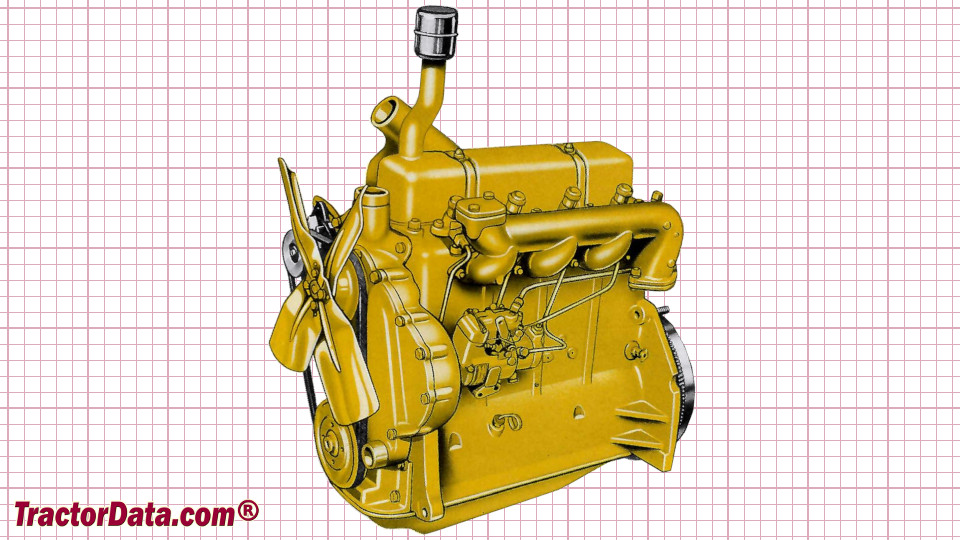

J.I. Case W-5 engine image
