J.I. Case 420 Engine


J.I. Case 420 tractor photo
1959 - 1961
Industrial Crawler tractor
Engine options
J.I. Case 2.4L 4-cyl gasoline
J.I. Case 3.1L 4-cyl diesel
Engine Detail
J.I. Case
gasoline
4-cylinder
liquid-cooled
Displacement148 ci
2.4 L
Bore/Stroke3.375x4.125 inches
86 x 105 mm
Power42 hp
31.3 kW
Fuel systemcarburetor
Air cleaneroil bath
Compression7.1:1
Rated RPM1850
Idle RPM500-2000
Firing order1-3-4-2
Starterelectric
Starter volts12
Coolant capacity12 qts
11.4 L
SparkplugChampion D16
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.014 inches (cold)
0.356 mm
Exhaust valve clearance0.014 inches (cold)
0.356 mm
Engine Oil

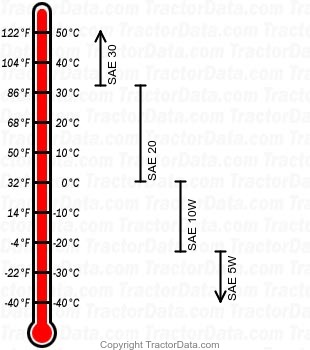

420 gasoline engine oil chart
Oil capacity6 qts
5.7 L
Engine Detail
J.I. Case
diesel
4-cylinder
liquid-cooled
Displacement188 ci
3.1 L
Bore/Stroke3.8125x4.125 inches
97 x 105 mm
Power42 hp
31.3 kW
Air cleaneroil bath
Compression17.5:1
Rated RPM1850
Idle RPM700-2025
Firing order1-3-4-2
Starterelectric
Starter volts12
Oil capacity6 qts
5.7 L
Coolant capacity12 qts
11.4 L
Intake valve clearance0.014 inches (cold)
0.356 mm
Exhaust valve clearance0.014 inches (cold)
0.356 mm
