Tractors > John Deere > 420 Crawler Loader

John Deere 420 Crawler Loader

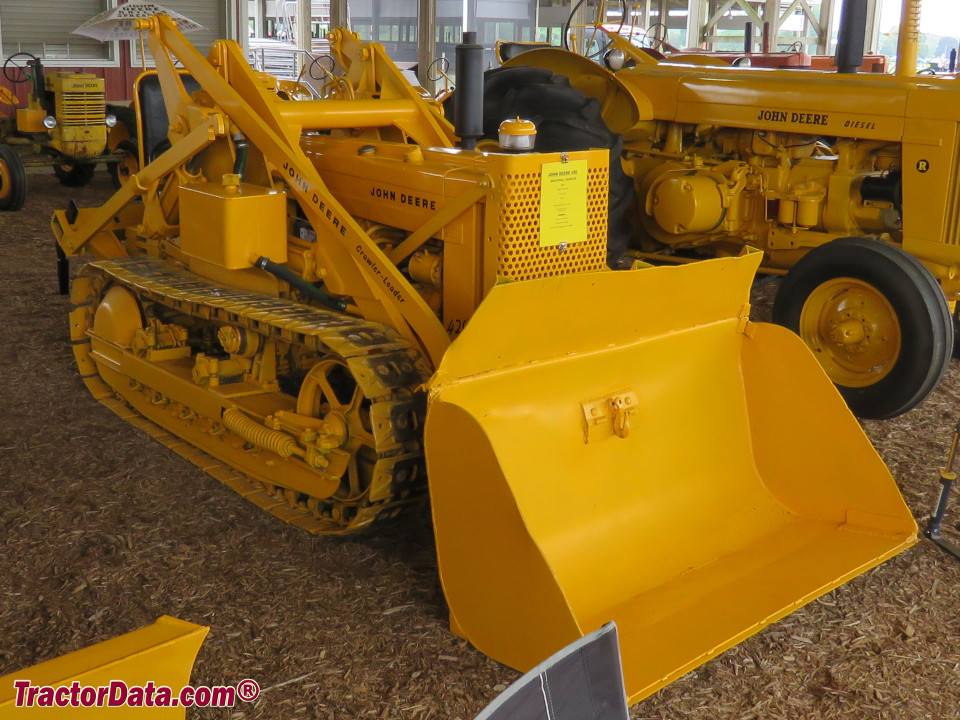

John Deere 420 Crawler Loader tractor photo
1957 - 1958
Crawler Loader
Series map:
420 Crawler Loader
33.0hp
Production
ManufacturerJohn Deere
Crawler Loader
Built in Dubuque, Iowa, USA
John Deere 420 Crawler Loader Engine
John Deere 1.9L 2-cyl gasoline
Fuel tank10.5 gal
39.7 L
Engine details ...
John Deere 420 Crawler Loader Transmissions
4-speed gear
5-speed gear
5-speed mechanical shuttle
Transmission details ...
John Deere 420 Crawler Loader Power
Belt (claimed)29.7 hp
22.1 kW
Mechanical
Drivecrawler
Contracting band brakes
Open operator station.
Photos
No photos of the John Deere 420 Crawler Loader are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure1250 psi
86.2 bar
Pump flow23 gpm
87.1 lpm
Dimensions & Tracks
Weight8945 lbs
4057 kg
12-inch tracks
Full dimensions and tracks ...
John Deere 420 Crawler Loader attachments
front-end loader
Attachment details ...
Electrical
Groundpositive
Battery volts6
References
420 Crawler Loader references literature
Industrial Tractors and Equipment published in 1957, by John Deere
