J.I. Case 430 Utility Engine


J.I. Case 430 Utility tractor photo
1960 - 1965
Industrial tractor
Engine options
J.I. Case 2.4L 4-cyl gasoline
J.I. Case 3.1L 4-cyl diesel
Engine Detail
J.I. Case G-148B
gasoline
4-cylinder 8-valve
liquid-cooled
Displacement148 ci
2.4 L
Bore/Stroke3.375x4.125 inches
86 x 105 mm
Power (gross)38 hp
28.3 kW
Fuel system1-inch carburetor
Air cleaneroil bath
Compression7:1
Rated RPM1750
Idle RPM600-1925
Torque128 lb-ft
173.6 Nm
Torque RPM1200
Firing order1-3-4-2
Starter volts12
Coolant capacity14 qts
13.2 L
SparkplugChampion D16
 Autolite BT3
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.014 inches*Cold
0.356 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

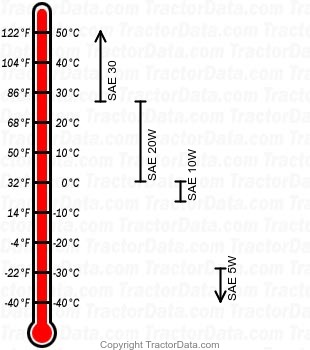

430 Utility gasoline engine oil chart
Oil capacity5 qts
4.7 L
Oil change120 h
Engine Detail
J.I. Case G-188D
diesel
4-cylinder 8-valve
liquid-cooled
Displacement188 ci
3.1 L
Bore/Stroke3.8125x4.125 inches
97 x 105 mm
Power (gross)41 hp
30.6 kW
Air cleaneroil bath
Compression17.5:1
Rated RPM1750
Idle RPM600-1925
Torque133 lb-ft
180.3 Nm
Torque RPM1300
Firing order1-3-4-2
Starter volts12
Coolant capacity16.5 qts
15.6 L
Exhaust valve clearance0.014 inches*Cold
0.356 mm
