Tractors > Ford > 4400

Ford 4400 Transmission



Ford 4400 industrial tractor photo
1965 - 1975
Model year
Industrial tractor
Transmissions overview
6-speed mechanical shuttle
8-speed gear
10-speed full power shift
Transmission
TransmissionManual Reversing
Typemechanical shuttle
Gears6 forward and 4 reverse
Oil capacity13.8 qts
13.1 L
Speeds

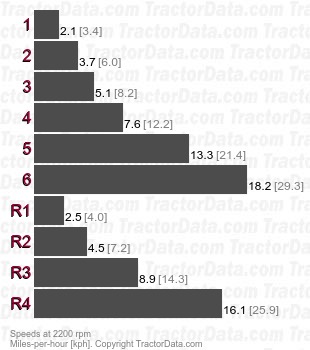

4400 Manual Reversing mechanical shuttle speeds
Shift Pattern
Ford 4400 transmission controls
Transmission
TransmissionDual Range
Typegear
Gears8 forward and 2 reverse
Oil capacity13.8 qts
13.1 L
Speeds

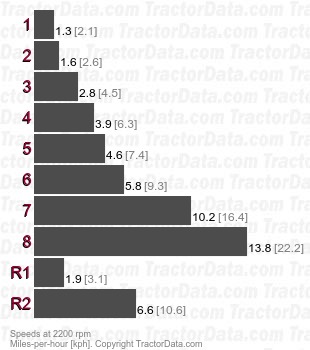

4400 Dual Range gear speeds
Shift Pattern
Ford 4400 transmission controls
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Oil capacity13.2 qts
12.5 L
Speeds

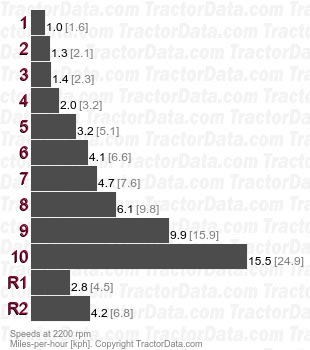

4400 Select-O-Speed full power shift speeds
