International Harvester 2404 Lo-Boy
|
|
| Production | |
| Manufacturer | International Harvester |
| low-profile tractor | |
| Variants | |
| 404 | farm tractor |
| 2404 | industrial utility |
| 2404 Lo-Boy | low-profile |
| International Harvester 2404 Lo-Boy Engine | |
| International Harvester 2.2L 4-cyl gasoline | |
| Fuel tank | 16.2 gal 61.3 L |
 Engine details ... | |
| International Harvester 2404 Lo-Boy Transmissions | |
| 4-speed gear | |
| 8-speed | |
| 4-speed shuttle | |
 Transmission details ... |
| International Harvester 2404 Lo-Boy Power | |
| Engine (gross) | 47 hp 35.0 kW |
| Drawbar (claimed) | 33.5 hp 25.0 kW |
| PTO (claimed) | 36.7 hp 27.4 kW |
| Mechanical | |
| Two-wheel drive | |
| Open operator station. |
| Dimensions & Tires | |
| Wheelbase | 74 inches 187 cm |
| Weight | 3480 to 3750 pounds |
 Full dimensions and tires ... | |

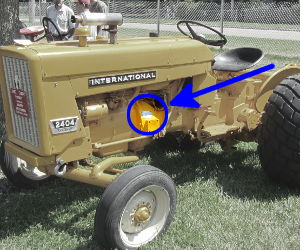

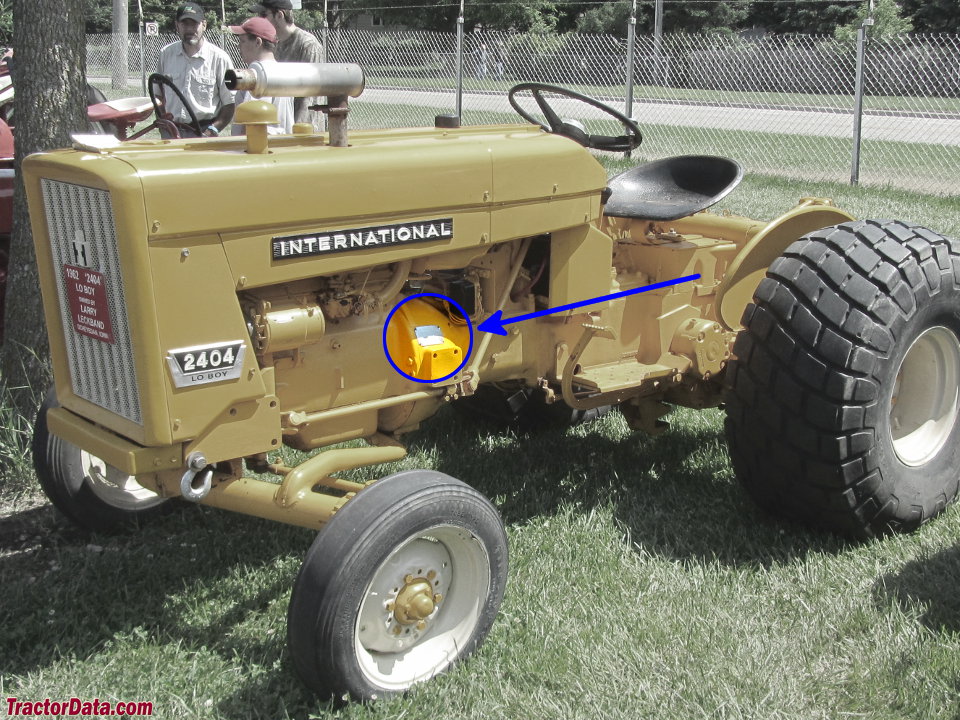

| 2404 Lo-Boy Serial Number Location | |
 | |
| Right side of engine. |
| References | |
 | |
| Buyer's Guide 1965 published by International Harvester | |
| Buyer's Guide 1967 published by International Harvester |
