Tractors > John Deere > 350D

John Deere 350D



John Deere 350D tractor photo
1985 - 1988
Bulldozer
Series map:
350D
50.0hp
Production
ManufacturerJohn Deere
Bulldozer
John Deere 350D Engine
John Deere 2.9L 3-cyl diesel
Engine details ...
John Deere 350D Transmission
4-speed shuttle
Transmission details ...
John Deere 350D Power
Engine (gross)50 hp
37.3 kW
Engine (net)48 hp
35.8 kW
Mechanical
Drivecrawler
Steeringclutch-brake system
Contracting band brakes
Four-post ROPS with canopy. Cab optional.
Photos
No photos of the John Deere 350D are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel22 gal
83.3 L
Hydraulic system15.4 gal*Capacity of the reservoir is 6.4 US gallons and the hydraulic system is 10 gallons.
58.3 L
Hydraulics
Typeopen center
Capacity15.4 gal*Capacity of the reservoir is 6.4 US gallons and the hydraulic system is 10 gallons.
58.3 L
Pressure2250 psi
155.1 bar
Total flow15 gpm
56.8 lpm
 23 gpmOptOptional
87.1 lpm
Dimensions & Tracks
Weight10600 lbs
4808 kg
14-inch tracks
Full dimensions and tracks ...
John Deere 350D attachments
blade
Attachment details ...
350D Serial Numbers
Location:Serial number plate located on the front of the seat frame of the John Deere 350.
1985723603
1986726753
1987732792
1988742866

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Battery volts12
References

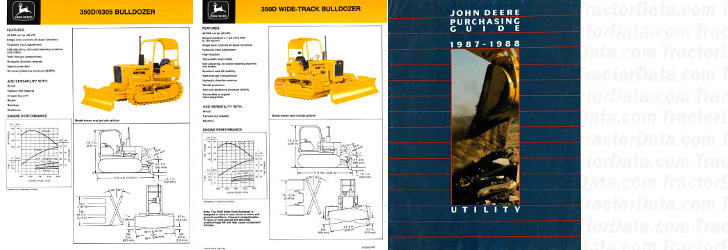

350D references literature
350D/6305 Bulldozer published by John Deere
350D Wide-Track Bulldozer published in 1986, by John Deere
Utility Equipment Purchasing Guide published in 1987, by John Deere
