Tractors > John Deere > 350C

John Deere 350C



John Deere 350C tractor photo
1975 - 1985
Industrial Crawler tractor
Series map:
350C
46.0hp
Production
ManufacturerJohn Deere
Industrial Crawler tractor
Variants
350Ccrawler
350CLtrack loader
John Deere 350C Engine
John Deere 2.5L 3-cyl diesel
Engine details ...
John Deere 350C Transmission
4-speed shuttle
Transmission details ...
John Deere 350C Power
Engine (gross)46 hp
34.3 kW
Engine (net)42 hp
31.3 kW
Drawbar (claimed)31.2 hp
23.3 kW
Mechanical
Drivecrawler
Steeringclutch-brake system
Contracting band brakes
Four-post ROPS with canopy. Cab optional.
Photos
No photos of the John Deere 350C are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel22 gal
83.3 L
Hydraulic system6.4 gal (reservoir)
24.2 L
 9.25 gal (bulldozer)
35.0 L
Hydraulics
Typeopen center
Capacity6.4 gal (reservoir)
24.2 L
 9.25 gal (bulldozer)
35.0 L
Pressure2250 psi
155.1 bar
Total flow15 gpm
56.8 lpm
 23 gpmOptOptional
87.1 lpm
Power Take-off (PTO)
Rear PTOoptional
Rear PTO Type540
Dimensions & Tracks
Weight10150 to 10600 pounds
14-inch tracks
Full dimensions and tracks ...
John Deere 350C attachments
blade
Attachment details ...
350C Serial Numbers
Location:Serial number plate located on the front of the seat frame of the John Deere 350.
1975219500
1976240367
1977261204
1978287210
1979313956
1980340930
1981365414
1982378066
1983383600
1984388916
1985393401

FAQ: How to read a serial number table.
References

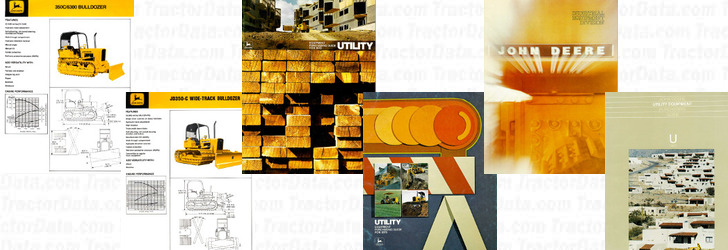

350C references literature
350C/6300 Bulldozer published by John Deere
JD350-C Wide-Track Bulldozer published in 1974, by John Deere
Utility Purchasing Guide published in 1978, by John Deere
Utility Purchasing Guide published in 1979, by John Deere
Industrial Equipment Division published in 1980, by John Deere
Utility Equipment Purchasing Guide published in 1981, by John Deere
