J.I. Case 380B Construction King

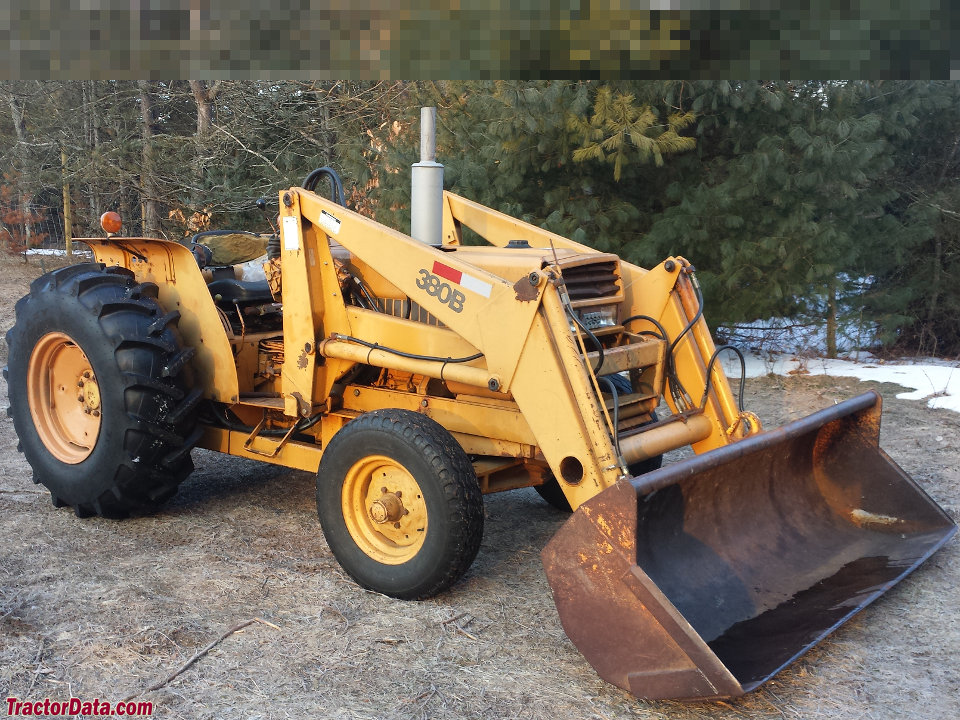

J.I. Case 380B Construction King tractor photo
1985 - 1991
Industrial tractor
Production
ManufacturerJ.I. Case
Industrial tractor
Variants
380Bgeneral-purpose
380B LCGlow center of gravity
485farm tractor
J.I. Case 380B Engine
J.I. Case 2.9L 3-cyl diesel
Engine details ...
J.I. Case 380B Power
Engine (gross)53 hp
39.5 kW
Engine (net)50 hp
37.3 kW
Drawbar (claimed)38.1 hp
28.4 kW
PTO (claimed)42.4 hp
31.6 kW
Mechanical
Two-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS.
Capacity
Fuel20 gal
75.7 L
Hydraulic system36 gal
136.3 L
Hydraulics
Typeopen center
Capacity36 gal
136.3 L
Pressure2500 psi
172.4 bar
SCV flow12 gpm
45.4 lpm
Total flow15.4 gpm
58.3 lpm
Steering flow2.5 gpm
9.5 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Rear lift (at ends)3100 lbs
1406 kg
Rear lift (at 24"/610mm)2700 lbs
1224 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@1934
Dimensions & Tires
Wheelbase79 inches
200 cm
Weight5250 lbs
2381 kg
Front tire7.50x16
Rear tire14.9x24
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps45
Battery CCA605
Battery volts12
References
380B Construction King references literature
Model 380B Tractor published by J.I. Case
Utility Equipment published in 1988, by J.I. Case
