Ford 531 Engine


Ford 531 tractor photo
1975 - 1981
Industrial tractor
Series map:
231
531
36.5hp
59.5hp
Engine options
Ford 3.3L 3-cyl diesel
Ford 3.3L 3-cyl gasoline
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke4.4x4.4 inches
112 x 112 mm
Power (net)55 hp
41.0 kW
Power (gross)59.5 hp
44.4 kW
Compression16.3:1
Rated RPM2200
Idle RPM600-2475
Torque157 lb-ft
212.9 Nm
Torque RPM1200
Firing order1-2-3
Starterelectric
Starter volts12
Coolant capacity11 qts
10.4 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil

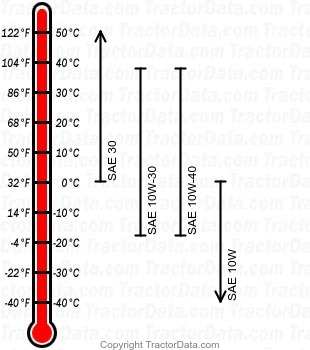

531 diesel engine oil chart
Oil capacity7 qts
6.6 L
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke4.4x4.4 inches
112 x 112 mm
Power (net)56 hp
41.8 kW
Power (gross)60 hp
44.7 kW
Compression7.75:1
Rated RPM2200
Idle RPM600-2495
Torque173 lb-ft
234.6 Nm
Torque RPM1000
Firing order1-2-3
Starterelectric
Starter volts12
Coolant capacity11 qts
10.4 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil

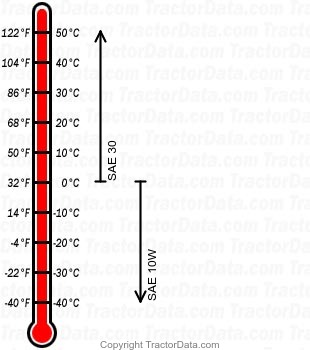

531 gasoline engine oil chart
Oil capacity7 qts
6.6 L
