| | 1960 - 1965 |
| New Generation Series | | Industrial tractor |
|
Series map:
1010
2010
3010
40.0hp
50.0hp
64.4hp
| Transmission options |
| 8-speed constant mesh |
| 8-speed two-speed power shift |
| Transmission |
| Manufacturer | John Deere
|
| Type | constant mesh
|
| Gears | 8 forward and 3 reverse
|
| Clutch | 279.4mm mechanical dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| Speeds |
| With 14.9-28 rear tires. |
|
| Transmission |
| Transmission | John Deere H-L-R
|
| Type | two-speed power shift
|
| Gears | 8 forward and 3 reverse
|
| Clutch | 254mm hydraulic dry disc
|
| Oil capacity | 27 qts
25.6 L
|
| Four ranges with left-hand high-low power shift, plus reverse shuttle, for each range. |

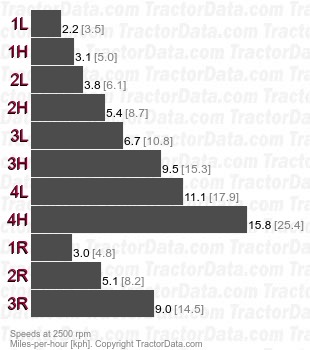

| Speeds |
| With 14.9-28 rear tires. |
|
