Ford 535

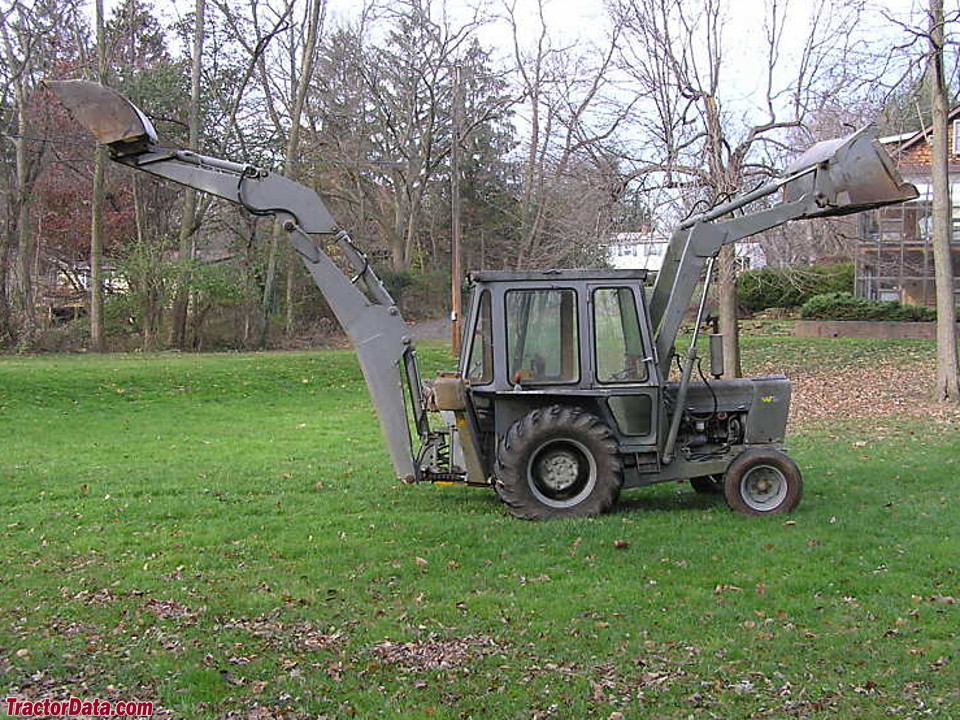

Ford 535 tractor photo
1975 - 1977
Industrial tractor
Production
ManufacturerFord
Industrial tractor
Variants
515utility
531LCG
532woods tractor
535loader-tractor
4600farm tractor
Ford 535 Engines
Ford 3.3L 3-cyl diesel
Ford 3.3L 3-cyl gasoline
Engine details ...
Ford 535 Transmissions
6-speed manual reversing
4-speed torque converter
Transmission details ...
Ford 535 Power
Engine (gross)59 hp
44.0 kW
Engine (net)56 hp
41.8 kW
Mechanical
Two-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Power steering
Mechanical wet disc brakes
Open operator station. Four-post ROPS available.
Capacity
Fuel16 gal
60.6 L
Hydraulic system14 gal
53.0 L
Hydraulics
Typeopen center
Capacity14 gal
53.0 L
Pressure1900 psi (loader)
131.0 bar
 2500 psi (hitch)
172.4 bar
Pump flow27 gpm (loader)
102.2 lpm
 5.6 gpm (hitch)
21.2 lpm
 8 gpm (hitch)OptOptional
30.3 lpm
Tractor hitch
Rear TypeI
Controlposition and draft control
Rear lift (at 24"/610mm)3080 lbs
1397 kg
Power Take-off (PTO)
Rear PTOtransmission OptOptional
 independent OptOptional
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase80.1 inches
203 cm
Weight7130 to 7323 pounds
Front tire7.50-16
Rear tire16.9-24
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging volts32
 51 OptOptional
References
535 references literature
231 335 420 515 531 532 535 Operator's Manual (SE 3503) published in 1975
535 published in 1976, by Ford
535 published in 1977, by Ford
Buyer's Guide published in 1976, by Ford
